XTFC010BBA

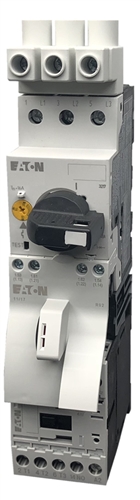

Eaton XTFC010BBA Type F combination starter


Alternative Views:


Eaton XTFC010BBA Type F Combination Motor Starter adjustable from 6.3A - 10A and has a 12 AMP, 120 volt AC coil rated contactor

Catalog Page / Specifications

List Price: $510.00
Our Price: $184.57
Savings: $325.43
Stock Items : Ships same day up until 4 p.m. EST
Non-Stock Items : 1-2 days for item to ship for standard delivery

Quantity in Stock:12

Product Code: XTFC010BBA
Qty:

Description Detailed Specifications

Eaton has introduced a new line of combination motor controllers utilizing their XTCE contactors and XTPR manula motor protectors that offers diversity and reliability matched second to none.  Eaton’s XT IEC open nonreversing and reversing manual motor controllers combine a manual motor protector with an IEC contactor to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short-circuit protection and remote control operation in one compact, assembled
unit. these assembled manual motor controllers cover motors with FLA ratings from 0.10A to 65A.
Technical Specifications
  • ON/OFF rotary handle with lockout provision
  • Visible trip indication
  • Test trip function
  • Motor applications from 0.10A to 65A
  • Class 10 overload protection
  • Built-in heater and magnetic trip elements to protect the motor
  • Phase loss sensitivity
  • Type 2 coordination
  • Ambient compensated up to 55°C [140°F]
  • Control inputs located at front of starter for easy access and wiring
  • Wide range of coil
  • DIN rail mount
