H2013B

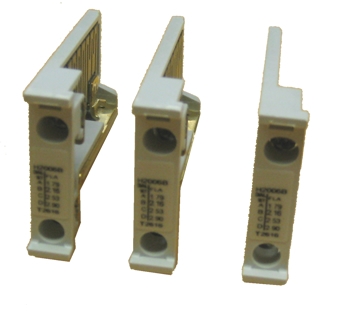

Eaton H2013B Heater Pack of 3


Eaton / Cutler Hammer H2013B-3 heaters (pack of 3) - Class 20 standard trip rating and adjustable from 18.7 to 30.7 AMPS - For use with any Size 00-0 Series C starters and Size 1-2 Series B Starters

H2013B Datasheet

List Price: $98.67
Our Price: $48.64
Savings: $50.03
Stock Items : Ships same day up until 4 p.m. EST
Non-Stock Items : 1-2 days for item to ship for standard delivery

Quantity in Stock:6

Product Code: H2013B
Qty:

Description Detailed Specifications

The Eaton AN16 Freedom Series NEMA rated starters feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials.  Adjustable bimetallic ambient compensated overload relays with interchangeable heater packs—available in three basic sizes, covering applications up to 900 hp—reducing the number of different contactor/overload relay combinations that have to be stocked.  These three-phase, full voltage non-reversing magnetic starters are most commonly used to switch AC motor loads. Starters consist of a magnetically actuated switch (contactor) and an overload relay assembled together.
Technical Specifications
  • Selectable manual or automatic reset operation
  • Interchangeable heater packs adjustable ±24% to match motor FLA and calibrated for 1.0 and 1.15 service factors. Heater packs for smaller overload relay will mount in larger overload relay— useful in derating applications such as jogging
  • Load lugs built into relay base
  • Single-phase protection, Class 20 or Class 10 trip time
  • Overload trip indication
  • Electrically isolated NO-NC contacts (pull RESET button to test)
  • Sizes 00–3 have a NO auxiliary contact block mounted on right-hand side (on Size 00, contact occupies 4th power pole position—no increase in width)
