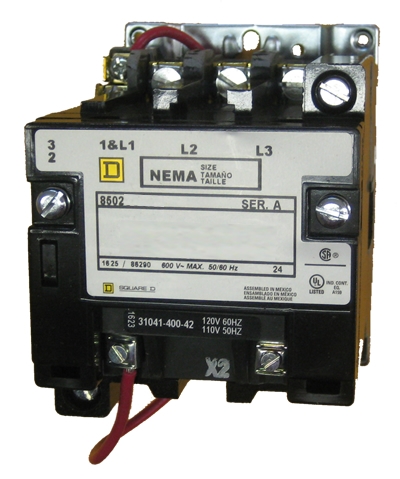

Square D 8502SCO2V01S NEMA Size 1 Contactor
Square D 8502SCO2V01S Ser. A NEMA Size 1 3-pole contactor rated at 27 AMPS with a 24 volt AC rated coil - Rated for 7.5 H.P. @ 230 volt / 10 H.P. @ 460 volt 3 Phase and Form S separate control when a separate source of power is available for the control (coil) voltage.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

List Price: $485.00
Our Price: $198.85
Savings: $286.15
Stock Items : Ships same day up until 4 p.m. EST
Non-Stock Items : 1-2 weeks for item to ship for standard delivery

Quantity in Stock:1
Product Code: 8502SCO2V01S

Description Detailed Specifications
Class 8502SCO2S magnetic NEMA contactors are used for full voltage starting and stopping AC squirrel cage motors. Motor overload protection is provided by adding melting alloy type thermal overload relays. Class 8502SC0 starters are available in NEMA Sizes 00-7. Type S starters are designed for operation at 600 Volts AC, 50-60 Hertz.

These Square D starters from NEMA size 00-6 are provided with a melting alloy thermal overload relay as standard. Interchangeable thermal units are available in standard trip (Class 20) Sizes 00-6, quick trip (Class 10) Sizes 00-4, and slow trip (Class 30) Sizes 00-3. Single-phase starters use one thermal unit, 3-phase starters use three thermal units.
Technical Specifications
  • Easily installed onto standard 35mm DIN rail or mounted direct to panel with included base plate
  • Melting Alloy thermal heaters can be installed and replaced without removing starter from panel
  • Coil replacement is easy and can be done while starter is installed
  • 24v and 120v control voltage starters are pre-wired for separate control
