3RV1902-1AV1
Siemens 3RV1902-1AV1 Undervoltage release for 480 volt circuits


Alternative Views:

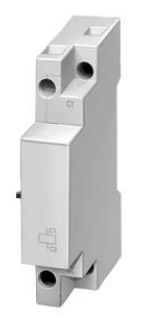

Siemens 3RV1902-1AV1 side mounted undervoltage release rated at 480 volt AC - screw terminals and snaps onto the side of any Siemens 3RV1 manual motor starter

3RV1902-1AV1 Datasheet
List Price: $85.00
Our Price: $43.26
Savings: $41.74
Stock Items : Ships same day up until 4 p.m. EST
Non-Stock Items : 1-2 days for item to ship for standard delivery

Quantity in Stock:(Out of Stock)

Product Code: 3RV1902-1AV1
Qty:

Description Detailed Specifications

The 3RV1902 auxiliary releases (undervoltage trips) are side mounted accessories that trip the 3RV manual motor protector in the event of an under voltage situation, thus protecting your motor from damage.

The 3RV101 MSP’s, can be used as components in Group Installation per NEC 430-53(C) to turn motors on and off. Each device has built-in heater elements that provide overload protection and magnetic trip elements to protect the motor. When the 3RV101 is used as a component in Group Installation, multiple MSP’s can be installed below one circuit breaker to protect its own motor. A contactor can be mounted to the MSP to provide a remotely operated starter.
