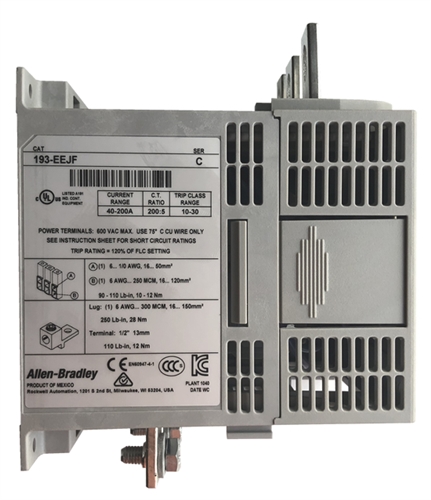

Allen Bradley 193-EEJF Electronic Overload Relay

Alternative Views:


Allen Bradley 193-EEJF electronic overload relay that is adjustable from 40 to 200 AMPS - comes with manual and automatic reset, phase loss protection, selectable class tripping, reset and stop button and trip indication - mounts directly to any 100-D115, 100-D140 or 100-D180 3 pole contactor.

193-EEJF Datasheet

Note: IMC-Direct is not an authorized Rockwell Automation distributor
Note: This product does not come with a Rockwell Automation warranty

Quantity in Stock:(Out of Stock)

Availability : Obsolete - Please call 877.334.7893 for replacement
Product Code: 193-EEJF
Qty:

Description Detailed Specifications

The Allen Bradley 193-EEJF is self-powered which means that the E1 Plus Overload Relay installs in the same manner as traditional overload relays. Device setup is accomplished by simply dialing the setting potentiometer to the motor FLA rating. The low energy consumption of the electronic design minimizes temperature rise issues inside control cabinets.

A wide 5:1 adjustment range results in the need for half as many catalog numbers as the bimetallic alternative in order to cover the same current range. This helps to reduce inventory carrying costs and affords greater installation flexibility for dual voltage machines. Evenly spaced setting tick marks enhance the ease of installation setup.
Technical Specifications
  • IEC Operating Voltage : 690 volt
    Trip Class (Adjustable) : 10, 15, 20 30
    Reset Type : Automatic and Manual
    Phase Loss protection
    N.C. Trip Contact
    N.O. Alarm Contact
    Screw Terminals
