Eaton / Cutler Hammer  |  SKU: XTSC010BB

XTSC010BB

$214.69 $555.00
Shipping calculated at checkout.

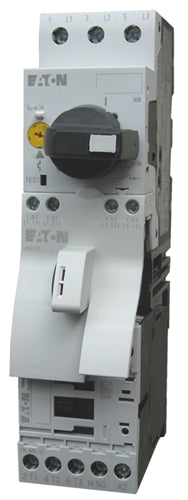

Eaton XTSC010BB combination motor starter adjustable from 6.3 to 10 AMPS (XTPR010BC1) and has a 12 AMP contactor with an AC rated coil. Each combination starter comes fully assembled with a front mounted auxiliary that contains 1 normally open and 1 normally closed contact set that is connected to the manual motor starter. Phase loss protection and class 10 tripping are just two of the main features of the XTSC010BB that make it the most rugged and reliable motor protection device available today.

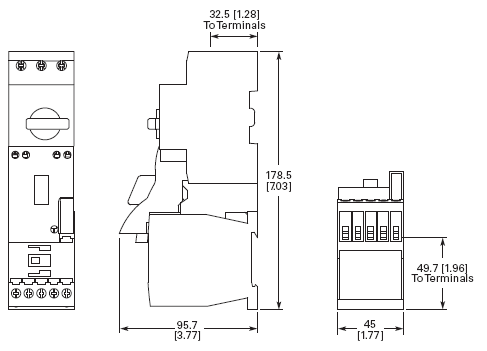

Catalog Page / Specifications

Stock - Can ship today if ordered prior to 4 p.m. EST

ON/OFF rotary handle with lockout provision Visible trip indication Test trip function Motor applications from 0.10A to 65A Class 10 overload protection Built-in heater and magnetic trip elements to protect the motor Phase loss sensitivity Type 2 coordination Ambient compensated up to 55°C [140°F] Control inputs located at front of starter for easy access and wiring Wide range of coil DIN rail mount

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Eaton has introduced a new line of combination motor controllers utilizing their XTCE contactors and XTPR manula motor protectors that offers diversity and reliability matched second to none. Eaton’s XT IEC open nonreversing and reversing manual motor controllers combine a manual motor protector with an IEC contactor to provide a complete motor protection solution by combining motor disconnect function, thermal overload protection, magnetic short-circuit protection and remote control operation in one compact, assembled
unit. these assembled manual motor controllers cover motors with FLA ratings from 0.10A to 65A.

Click here for a catalog page of this XTSC Combo Motor Starter
