Eaton / Cutler Hammer  |  SKU: XTRE10B31TD

XTRE10B31TD

$55.42 $147.00
Shipping calculated at checkout.

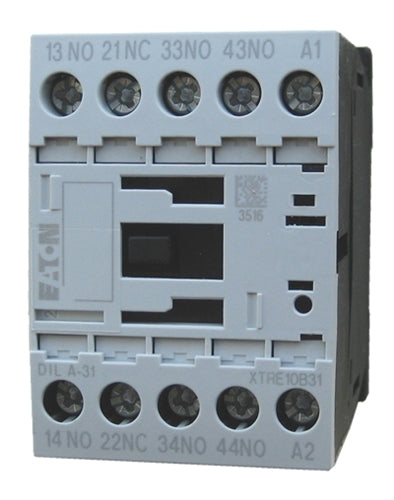

Eaton XTRE10B31TD 10 AMP, 4-pole control relay with a 24 volt DC coil and 3 normally open and 1 normally closed poles. Each control relay comes with screw terminals and can be mounted on standard 35mm DIN rail or base mounted for easy installation. Additional front mounted auxiliary contact blocks can be added to the XTRE10B31TD for up to 8 total contacts for switching. For different contact arrangements, you can try the XTRE10B22TD (for 2 normally open and 2 normally closed) or the XTRE10B40TD (for 4 normally open) which also can be outfitted with different auxiliary contact blocks to reach any possible combination.

XTRE10B31TD Datasheet

Stock - Can ship today if ordered prior to 4 p.m. EST

AC control from 12V to 550V 50 Hz, 600V 60 Hz DC control from 12V to 220V On-delay and multi function timers 24–240 Vac/Vdc control Available with screw or spring cage terminals Four-pole configurations IP20 finger and back-of hand proof

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Eaton offers the XTRE10B31TD 10 AMP 4 pole control relays that comes with three different contact configurations: 2 normally open/2 normally closed, 3 normally open/1 normally closed and 4 normally open. And with the addition of a 4 pole front mounted auxiliary contact, you can have any combination up to 8 poles in a narrow design that mounts directly on standard 35mm DIN rail. In addition to the auxiliary contacts, you can add an on-delay or off delay timer that snaps onto the front of the relay for easy installation.

Click here for a catalog page of this XTRE Control Relay
