Eaton / Cutler Hammer | SKU:
XTPRP16BC1
55% off
XTPRP16BC1
$88.27
$197.00
Unit price
/
Unavailable
Shipping calculated at checkout.

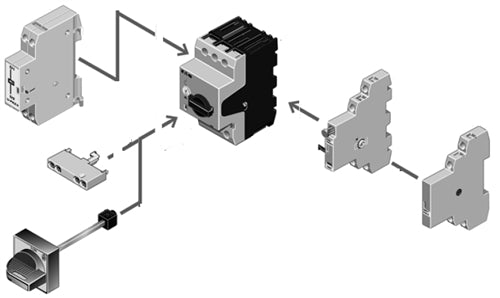

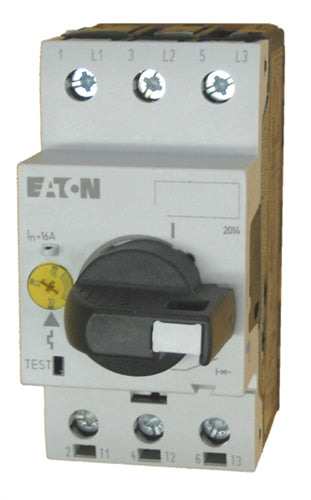

The Eaton XTPRP16BC1 manual motor protector is adjustable from 0.10 to 0.16 AMPS, has single phase sensitivity and mounts to standard 35MM din rail. Class 10 tripping protection (trips in 10 seconds or less) is standard on all XTPR motor starters along with a rotary operated on/off handle. Front and side mounted auxiliary contacts can be added to the XTPRP16BC1 in addition to undervoltage trips to suit any motor protection needs
XTPRP16BC1 Datasheet
Need a slightly higher AMP range? Click here to see the XTPRP25BC1
XTPRP16BC1 Datasheet
Need a slightly higher AMP range? Click here to see the XTPRP25BC1
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
ON/OFF rotary handle with lockout provision
Visible trip indication
Class 10 overload protection
Phase loss sensitivity
Ambient temperature compensation to IEC/EN 60947, VDE 0660
Fixed short-circuit trip— 14 times maximum setting of overload FLA dial
Type 2 coordination per IEC 947
Identification markers standard on starter faceplate
Motor applications from 0.1A to 65A
Built-in heater and magnetic trip elements to protect the motor
XTPRP16BC1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTPRP16BC1
$88.27
$197.00
Unit price
/
Unavailable
The Eaton XTPRP16BC1 line is UL listed under UL 508 as manual motor protectors. They provide an economical solution for applications requiring simple manual starting and stopping of motors. When used as a manual starter, they are typically installed in an enclosure. Many enclosures are offered as accessories for the MMPs. Separate short circuit protective devices, such as circuit breakers or fuses, are wired ahead of the MMPs. The short-circuit protective device should be sized per the NEC
and should not exceed 400% of the maximum FLA dial setting of the MMP.
A UL 508 Type E self protected manual combination starter/motor controller consists of a single device possessing four essential elements: disconnect, short circuit protection, motor controller, and motor overload protection such as the XTPRP16BC1. Some MMPs require use of a line side adapter for this type of approval. When tested as an official combination by UL, this device takes the place of a fuse-starter or breaker/starter.
A UL 508 Type E self protected manual combination starter/motor controller consists of a single device possessing four essential elements: disconnect, short circuit protection, motor controller, and motor overload protection such as the XTPRP16BC1. Some MMPs require use of a line side adapter for this type of approval. When tested as an official combination by UL, this device takes the place of a fuse-starter or breaker/starter.
