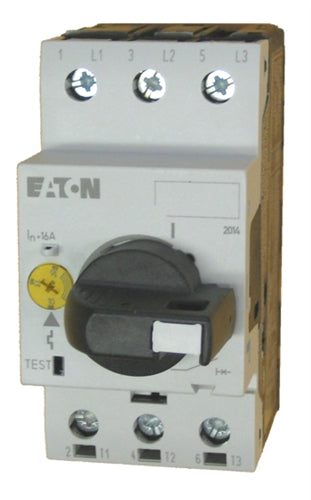

XTPR6P3BC1

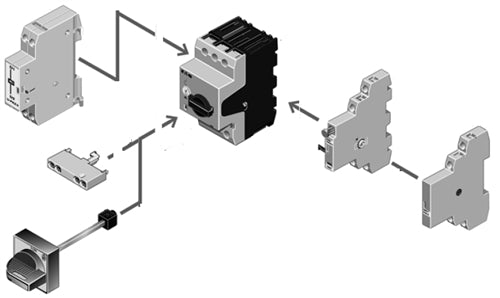

The Eaton XTPR6P3BC1 line is UL listed under UL 508 as manual motor protectors. They provide an economical solution for applications requiring simple manual starting and stopping of motors. When used as a manual starter, they are typically installed in an enclosure. Many enclosures are offered as accessories for the MMPs. Separate short circuit protective devices, such as circuit breakers or fuses, are wired ahead of the MMPs. The short-circuit protective device should be sized per the NEC and should not exceed 400% of the maximum FLA dial setting of the MMP.

A UL 508 Type E self protected manual combination starter/motor controller consists of a single device possessing four essential elements: disconnect, short circuit protection, motor controller, and motor overload protection such as the XTPR6P3BC1. Some MMPs require use of a line side adapter for this type of approval. When tested as an official combination by UL, this device takes the place of a fuse-starter or breaker/starter.
