Eaton / Cutler Hammer  |  SKU: XTPR063DC1
54% off

XTPR063DC1

$355.52 $780.00
Shipping calculated at checkout.

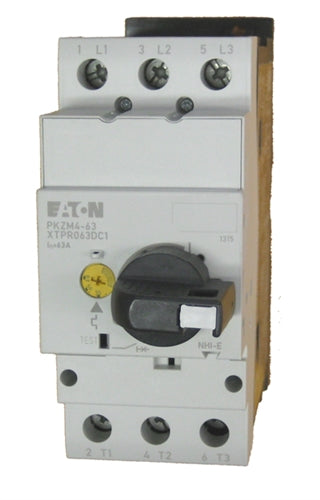

The Eaton XTPR063DC1 manual motor protector is adjustable from 55 to 65 AMPS, has single phase sensitivity and mounts to standard 35MM din rail. Class 10 tripping protection (trips in 10 seconds or less) is standard on all XTPR motor starters along with a rotary operated on/off handle. Front and side mounted auxiliary contacts can be added to the XTPR063DC1 in addition to undervoltage trips to suit any motor protection needs

XTPR063DC1 Datasheet

Need a slightly lower AMP range? Click here to see the XTPR058DC1

Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

ON/OFF rotary handle with lockout provision Visible trip indication Class 10 overload protection Phase loss sensitivity Ambient temperature compensation to IEC/EN 60947, VDE 0660 Fixed short-circuit trip— 14 times maximum setting of overload FLA dial Type 2 coordination per IEC 947 Identification markers standard on starter faceplate Motor applications from 0.1A to 65A Built-in heater and magnetic trip elements to protect the motor

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Eaton XTPR063DC1 Frame D Manual Motor Starters have six different AMP range settings in one frame size. These can be adjusted anywhere from 10-65 AMPS and are certified Type 1 and Type 2 Coordination to meet all of your motor protection needs.

A group motor installation can be defined as more than one motor circuit protected by a single set of fuses or circuit breaker on a motor branch circuit. This eliminates the need for individual fuses or circuit breakers for each motor circuit. Substantial component cost savings, panel space savings and reduced wiring installation time can be achieved in group motor installations. The XTPR063DC1 is tested and listed for group installation. If remote operation is required, a magnetic contactor can be wired in series with the MMP.
Click here for a catalog page of this XTPR Manual Motor Starter
