Eaton / Cutler Hammer | SKU:
XTPR040DC1
54% off
XTPR040DC1
$280.32
$615.00
Unit price
/
Unavailable
Shipping calculated at checkout.

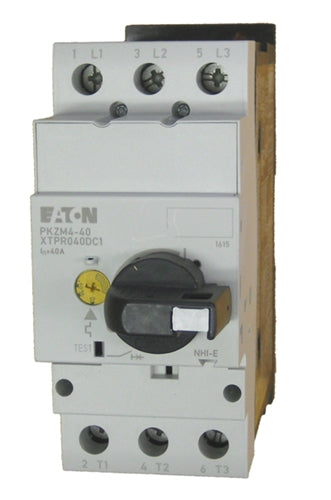

The Eaton XTPR040DC1 manual motor protector is adjustable from 32 to 40 AMPS, has single phase sensitivity and mounts to standard 35MM din rail. Class 10 tripping protection (trips in 10 seconds or less) is standard on all XTPR motor starters along with a rotary operated on/off handle. Front and side mounted auxiliary contacts can be added to the XTPR040DC1 in addition to undervoltage trips to suit any motor protection needs
XTPR040DC1 Datasheet
Need a slightly lower AMP range? Click here to see the XTPR032DC1
Need a slightly higher AMP range? Click here to see the XTPR050DC1
XTPR040DC1 Datasheet
Need a slightly lower AMP range? Click here to see the XTPR032DC1
Need a slightly higher AMP range? Click here to see the XTPR050DC1
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
ON/OFF rotary handle with lockout provision
Visible trip indication
Class 10 overload protection
Phase loss sensitivity
Ambient temperature compensation to IEC/EN 60947, VDE 0660
Fixed short-circuit trip— 14 times maximum setting of overload FLA dial
Type 2 coordination per IEC 947
Identification markers standard on starter faceplate
Motor applications from 0.1A to 65A
Built-in heater and magnetic trip elements to protect the motor
XTPR040DC1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTPR040DC1
$280.32
$615.00
Unit price
/
Unavailable
The Eaton XTPR040DC1 Frame D Manual Motor Starters have six different AMP range settings in one frame size. These can be adjusted anywhere from 10-65 AMPS and are certified Type 1 and Type 2 Coordination to meet all of your motor protection needs.
A group motor installation can be defined as more than one motor circuit protected by a single set of fuses or circuit breaker on a motor branch circuit. This eliminates the need for individual fuses or circuit breakers for each motor circuit. Substantial component cost savings, panel space savings and reduced wiring installation time can be achieved in group motor installations. The XTPR040DC1 is tested and listed for group installation. If remote operation is required, a magnetic contactor can be wired in series with the MMP.
A group motor installation can be defined as more than one motor circuit protected by a single set of fuses or circuit breaker on a motor branch circuit. This eliminates the need for individual fuses or circuit breakers for each motor circuit. Substantial component cost savings, panel space savings and reduced wiring installation time can be achieved in group motor installations. The XTPR040DC1 is tested and listed for group installation. If remote operation is required, a magnetic contactor can be wired in series with the MMP.
