Eaton / Cutler Hammer | SKU:
XTPAXUVR240V60H
57% off
XTPAXUVR240V60H
$44.81
$105.00
Unit price
/
Unavailable
Shipping calculated at checkout.

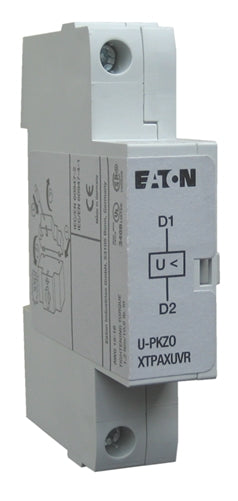

The Eaton XTPAXUVR240V60H is an under voltage trip mechanism for the XTPR series of manual motor starters/protectors and comes with a 240v60Hz AC control voltage. This side mounted accessory mounts on the right side and snaps into place without the use of any tools for installation. One additional side mounted auxiliary or front mounted auxiliary may be used simultaneously with the XTPAXUVR240V60H but must be installed on the left hand side.

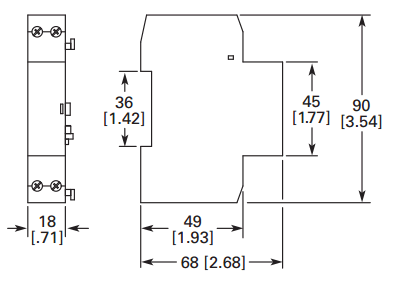

Catalog Page / Specifications
Need help finding the voltage? Click here to see a picture to help determine the location of the voltage for this undervoltage trip.
Catalog Page / Specifications
Need help finding the voltage? Click here to see a picture to help determine the location of the voltage for this undervoltage trip.
Stock - Can ship today if ordered prior to 4 p.m. EST
Can be used to trip the manual motor protector from a remote location.
Can be fitted on left side manual motor protectors.
Cannot be combined with XTPAXSR.
When combined with a circuit breaker, it can be used as emergency-stop device to IEC/EN 60204.
XTPAXUVR240V60H is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTPAXUVR240V60H
$44.81
$105.00
Unit price
/
Unavailable
The Eaton line of XTPR and XTRPD manual motor starters have a full range of interchangeable, snap-on accessories. From 2 and 3 pole side mounted auxiliaries, 2 pole front mounted auxiliaries to side mounted undervoltage trips and complete rotary handle assemblies, there is everything you need to suit your motor protection needs. The side mounted auxiliaries have a low-profile to minimize the width of your MMS in the cabinet or you have the option of a 2 pole front mounted auxiliary that does not increase the size of your XTPR manual motor protector.
For safety purposes, the Eaton manual motor starters come with undervoltage trips that range from 12v AC up to 600v AC and are easily installed on the side of your MMS. Also operation can be achieved within a panel by using the rotary operator kit that comes complete with the door mounted handle and the shaft to connect it to your starter.
For safety purposes, the Eaton manual motor starters come with undervoltage trips that range from 12v AC up to 600v AC and are easily installed on the side of your MMS. Also operation can be achieved within a panel by using the rotary operator kit that comes complete with the door mounted handle and the shaft to connect it to your starter.
