Eaton / Cutler Hammer | SKU:
XTPAXSA11
49% off
XTPAXSA11
$15.05
$29.25
Unit price
/
Unavailable
Shipping calculated at checkout.

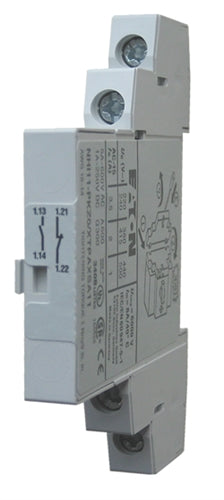

Eaton XTPAXSA11 side mounted 2 pole auxiliary contact with 1 N.O. and 1 N.C. Snaps onto side of XTRP and XTPRD manual motor protectors
Catalog Page / Specifications
Catalog Page / Specifications
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
Can be fitted on the right side of manual motor protectors (XTPB, XTPR, XTPM)
Can be combined with XTPAXSATR_ and XTPAXFA_ trip indicating auxiliary contact.
UL and IEC rated
XTPAXSA11 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTPAXSA11
$15.05
$29.25
Unit price
/
Unavailable
The Eaton line of XTPR and XTRPD manual motor starters has a full range of interchangeable, snap-on accessories. From 2 and 3 pole side mounted auxiliaries, 2 pole front mounted auxiliaries to side mounted undervoltage trips and complete rotary handle assemblies, there is everything you need to suit you motor protection needs. The side mounted auxiliaries have a low-profile to minimize the width of your MMS in the cabinet or you have the option of a 2 pole front mounted auxiliary that does not increase the size of your XTPR manual motor protector.
For safety purposes, the Eaton manual motor starters come with undervoltage trips that range from 12v AC up to 600v AC and are easily installed on the side of your MMS. Also operation can be achieved within a panel by using the rotary operator kit that comes complete with the door mounted handle and the shaft to connect it to your starter.
For safety purposes, the Eaton manual motor starters come with undervoltage trips that range from 12v AC up to 600v AC and are easily installed on the side of your MMS. Also operation can be achieved within a panel by using the rotary operator kit that comes complete with the door mounted handle and the shaft to connect it to your starter.
