Eaton / Cutler Hammer  |  SKU: XTOM2P4AC1

XTOM2P4AC1

$40.13 $102.00
Shipping calculated at checkout.

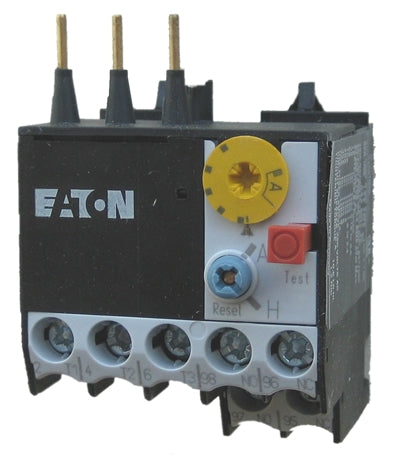

Eaton XTOM2P4AC1 thermal overload relay this is adjustable from 1.6 to 2.4 AMPS and mounts directly to the load side of any XTMC9A10 or XTMC9A01 contactor. This thermal overload comes with manual and automatic reset, two auxiliaries that are normally open and normally closed, and is single phase sensitive so that it will trip if a phase is lost. Installation of the XTOM2P4AC1 is simple as the connections are pre-wired and can be installed into the load side of the XTMC contactor.

Catalog Page / Specifications

Need a slightly lower AMP range? Click here to see the XTOM1P6AC1
Need a slightly higher AMP range? Click here to see the XTOM004AC1

Stock - Can ship today if ordered prior to 4 p.m. EST

Class 10 overload; trip response from 2 to 10 seconds Ambient compensated, bimetallic overload tripping mechanism Phase failure sensitive to IEC/EN 60947 Manual / Automatic reset button Built-in NO and NC auxiliary contacts

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Due to its compact size, the XTOM line of miniature overloads is best suited to be applied in light-duty loads, such as hoisting, packaging, material handling, heating, lighting and automation systems. These overloads direct mount to any screw terminal XTMC contactor for easy installtion. XTOM mini overloads are a particularly compact, economic and environmentally friendly solution wherever control of small motors or loads is required.

Click here for a catalog page on the XTOM overload relay
