Eaton / Cutler Hammer | SKU:
XTOB010DC1
47% off
XTOB010DC1
$94.49
$179.41
Unit price
/
Unavailable
Shipping calculated at checkout.

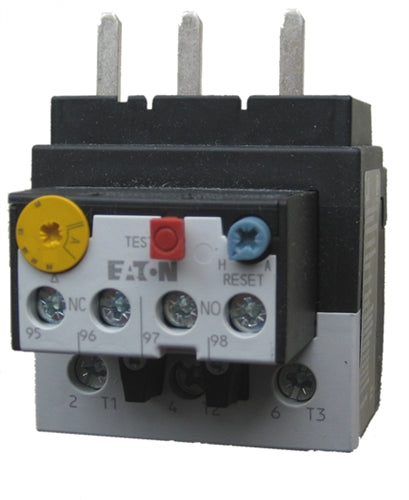

Eaton XTOB010DC1 thermal overload relay that is adjustable from 6 to 10 AMPS and has manual/automatic reset options. This 3 pole Eaton overload mounts directly to the XTCE040D, XTCE050D and XTCE065D contactors and is used for Class 10 (trips in 10 seconds or less in over current situations) motor protection. A set of auxiliary contacts, one N.O. and one N.C., are included on the XTOB010DC1 and used for cutting power to the coil when the overload trips.
Need a slightly higher AMP range? Click here to see the XTOB016DC1.
XTOB010DC1 Datasheet
Need a slightly higher AMP range? Click here to see the XTOB016DC1.
XTOB010DC1 Datasheet
Stock - Can ship today if ordered prior to 4 p.m. EST
Class 10 overload; trip response from 2 to 10 seconds
Ambient compensated, bimetallic overload tripping mechanism
Phase failure sensitive to IEC/EN 60947
Manual / Automatic reset button
Built-in NO and NC auxiliary contacts
XTOB010DC1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTOB010DC1
$94.49
$179.41
Unit price
/
Unavailable
The XTOB overload relays by Eaton provide a consistent, reliable and economical solution to your motor-protection needs. All XTOB relays are directly mounted to the XTCE contactors, minimizing spacing and installation time. Each overload relay has both a manual and automatic trip and reset button to suit your specific system. Also each XTOB relay is certified as Class 10 protection, which means it will trip within 10 seconds of a locked motor condition, saving you the time and expense of replacing your motor.
Adding this Eaton overload relay is essential to provide full circuit protection of your motor. Simply using a contactor will not provide the necessary level of protection that an overload can and will cause severe damage to your motor should a high load situation occur. With phase loss protection and an easy-to-use dial on the front of the XTOB, these overload relays are simple to set and adjust to your specific AMP needs. Also with a built in auxiliary contact for trip indication, you can trigger any other electrical equipment of this overload condition thus saving other failures and damages to your system.
Adding this Eaton overload relay is essential to provide full circuit protection of your motor. Simply using a contactor will not provide the necessary level of protection that an overload can and will cause severe damage to your motor should a high load situation occur. With phase loss protection and an easy-to-use dial on the front of the XTOB, these overload relays are simple to set and adjust to your specific AMP needs. Also with a built in auxiliary contact for trip indication, you can trigger any other electrical equipment of this overload condition thus saving other failures and damages to your system.
