XTMF9A00A
Catalog Page / Specifications
Ships same day up until 4 p.m. EST
5-7 days for item to ship for standard delivery
XTMF9A00A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTMF9A00A

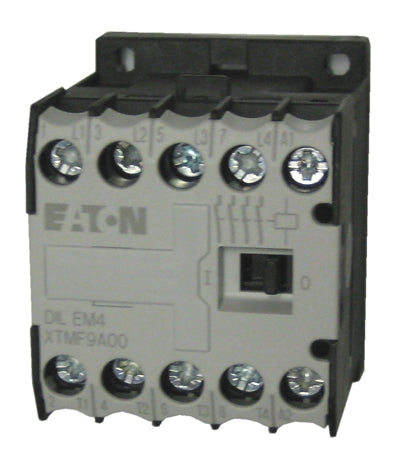

The XTMF9A00 miniature contactors from Eaton supplement their XTCE line of IEC rated contactors by providing a smaller frame size for fractional horsepower applications. These 9 AMP contactors are UL/IEC rated, come in 4 poles with normally open power poles and can be mounted on standard 35mm DIN Rail or screwed to a panel board. Their minimal size makes them perfect for all of your smaller size contactor needs.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 0.5 | 1.5 | 2 | 3 | 5 | 5 | 20 | 9 | 4 | 0 | 0 | 0 | XTMF9A00A | 110v50Hz/120v60Hz |
