Eaton / Cutler Hammer  |  SKU: XTMC9A10C

XTMC9A10C

$40.89 $135.99
Shipping calculated at checkout.

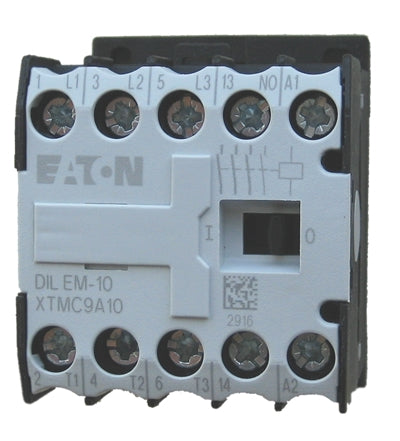

Eaton XTMC9A10C 9 AMP miniature contactor with a 415v50Hz/480v60Hz AC rated coil and 1 normally open base contact. This 3 pole UL/IEC rated contactor comes with screw terminals and can be mounted on standard 35mm DIN rail. Optional thermal overload relays and front mounted two and four pole auxiliaries can be added to the XTMC9A10C for motor protection and signalling purposes. These miniature Eaton contactors offer the smallest footprint available in the market today for a 9 AMP contactor at just 45mm.

Catalog Page / Specifications

Stock - Can ship today if ordered prior to 4 p.m. EST

Mechanical Life (operations) : 20,000,000 Maximum mechanical operating Frequency (ops/hr) : 9000 Insulation voltage (Ui) Vac : 690 Impulse withstand voltage (Uimp) Vac : 6000 Operational Voltage (Ue) Vac : 690 Short-circuit protection rating maximum fuse (gL/gG) Type 2 : 10 Voltage tolerance (pickup) : 0.85 - 1.1

IEC EN 60947 CE approved UL CSA CCC ATEX

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The XTMC9A miniature contactors from Eaton supplement their XTCE line of IEC rated contactors by providing a smaller frame size for fractional horsepower applications. These 9 AMP contactors are UL/IEC rated, come in 3 poles with a normally open or normally closd base auxiliary contact and can be mounted on standard 35mm DIN Rail or screwed to a panel board. Their minimal size makes them perfect for all of your smaller size contactor needs.

Click here for a catalog page of this XTMC Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
0.51.523552093010XTMC9A10C415v50Hz/480v60Hz
