Eaton / Cutler Hammer | SKU:
XTCR050D11T
65% off
XTCR050D11T
$420.68
$1,202.00
Unit price
/
Unavailable
Shipping calculated at checkout.
The Eaton XTCR050D11T reversing contactor is rated for 40 AMPS, 20 H.P. at 230 volt and 40 H.P. at 460 volt 3 phase and comes with a 24v50/60Hz AC rated coil. Two front mounted auxiliaries with one normally open and one normally closed contacts are included with each contactor along with a mechanical interlock and wiring harnesses for simple and fast installation. The XTCR050D11T is comprised of two XTCE050D00T contactors that are mechanically interlocked and thermal overload relays are available to form a complete motor starter assembly.
Need help finding the coil voltage? Click on this link for the location of the coil voltage for this contactor.
Need help finding the coil voltage? Click on this link for the location of the coil voltage for this contactor.
Stock - Can ship today if ordered prior to 4 p.m. EST
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32A
Plug-in accessories for reduced installation time
Coil replacement on Frames C–N (18–820A)
Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors
XTCR050D11T is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTCR050D11T
$420.68
$1,202.00
Unit price
/
Unavailable

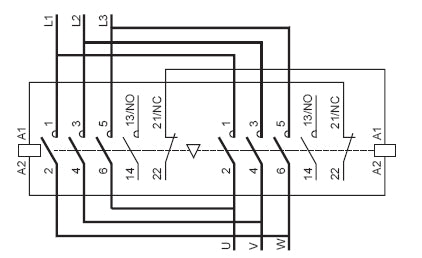

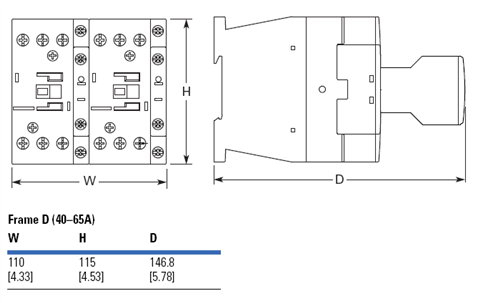

The XTCR line of IEC power control reversing contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCR050D11 reversing contactor set is comprised of two XTCE040D contactors mechanically and electrically interlocked for forward/reverse operation. These reversing contactors were developed with space restrictions in mind as the mechanical interlock does not increase the overall width of the unit, enabling it to fit in the most compact of areas. This Eaton XTCR set can be mounted on standard 35mm DIN rail or mounted to the back of the panel using the four mounting holes at the base of the unit.
Click here for a catalog page of this XTCR Reversing Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 3 | 10 | 15 | 20 | 40 | 50 | 50 | 65 | 3 | 0 | 1 | 1 | XTCR050D11T | 24v50/60Hz |
