Eaton / Cutler Hammer  |  SKU: XTCR050D11A
65% off

XTCR050D11A

$420.68 $1,202.00
Shipping calculated at checkout.
The Eaton XTCR050D11A reversing contactor is rated for 40 AMPS, 20 H.P. at 230 volt and 40 H.P. at 460 volt 3 phase and comes with a 110v50Hz/120v60Hz AC rated coil. Two front mounted auxiliaries with one normally open and one normally closed contacts are included with each contactor along with a mechanical interlock and wiring harnesses for simple and fast installation. The XTCR050D11A is comprised of two XTCE050D00A contactors that are mechanically interlocked and thermal overload relays are available to form a complete motor starter assembly.

Need help finding the coil voltage? Click on this link for the location of the coil voltage for this contactor.

Stock - Can ship today if ordered prior to 4 p.m. EST

AC and DC controlled contactors in the same compact frame Low power consumption AC and DC coils Built-in NO or NC auxiliary contacts to 32A Plug-in accessories for reduced installation time Coil replacement on Frames C–N (18–820A) Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

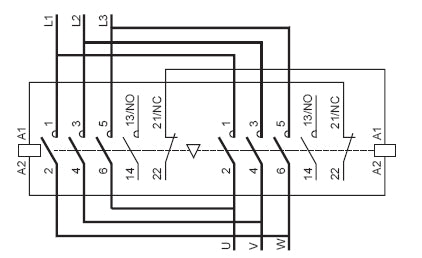

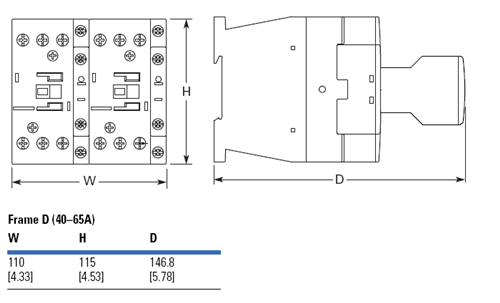

The XTCR line of IEC power control reversing contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCR050D11 reversing contactor set is comprised of two XTCE040D contactors mechanically and electrically interlocked for forward/reverse operation. These reversing contactors were developed with space restrictions in mind as the mechanical interlock does not increase the overall width of the unit, enabling it to fit in the most compact of areas. This Eaton XTCR set can be mounted on standard 35mm DIN rail or mounted to the back of the panel using the four mounting holes at the base of the unit.

Click here for a catalog page of this XTCR Reversing Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
3101520405050653011XTCR050D11A110v50Hz/120v60Hz
