Eaton / Cutler Hammer  |  SKU: XTCR032C21A
62% off

XTCR032C21A

$330.70 $869.00
Shipping calculated at checkout.
Eaton XTCR032C21A 32 AMP reversing contactor with a 110v50Hz/120v60Hz AC rated coil and is rated 10 H.P. @ 230 volt, 20 H.P. @ 460 volt 3 Phase. This reversing contactor set comes with 2 normally open and 1 normally closed auxiliary contacts per contactor, screw terminals and can mount on standard 35MM din rail or screwed down to the back of the panel. Two XTCE032C01A contactors that are mechanically interlock comprise the XTCR032C21A and come with line and load side wiring harnesses for easy and safe installation.

Catalog Page / Specifications

Stock - Can ship today if ordered prior to 4 p.m. EST

AC and DC controlled contactors in the same compact frame Low power consumption AC and DC coils Built-in NO or NC auxiliary contacts to 32A Plug-in accessories for reduced installation time Coil replacement on Frames C–N (18–820A) Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

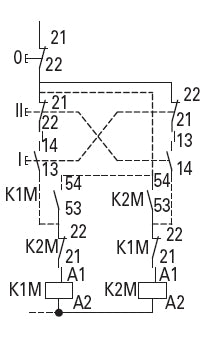

The XTCR line of IEC power control reversing contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCR032C21 reversing contactor set is comprised of two XTCE032C01 contactors mechanically and electrically interlocked for forward/reverse operation. These reversing contactors were developed with space restrictions in mind as the mechanical interlock does not increase the overall width of the unit, enabling it to fit in the most compact of areas. This Eaton XTCR set can be mounted on standard 35mm DIN rail or mounted to the back of the panel using the four mounting holes at the base of the unit.

Click here for a catalog page of this XTCR Reversing Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
351010202532403021XTCR032C21A110v50/120v60Hz
