Eaton / Cutler Hammer | SKU:
XTCR025C21TD
62% off
XTCR025C21TD
$308.91
$810.00
Unit price
/
Unavailable
Shipping calculated at checkout.

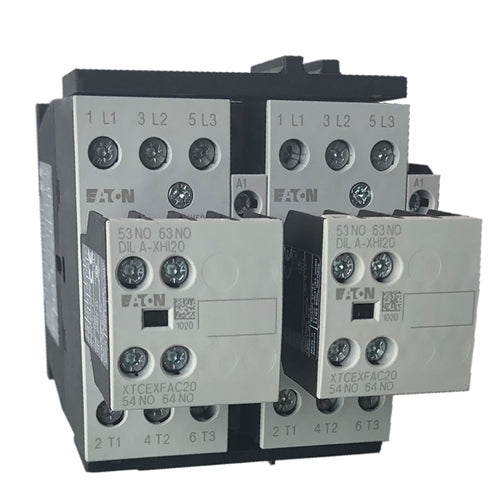

Eaton XTCR025C21TD 25 AMP reversing contactor with a 24 volt DC rated coil and is rated 7.5 H.P. @ 230 volt, 15 H.P. @ 460 volt 3 Phase. This reversing contactor set comes with 2 normally open and 1 normally closed auxiliary contacts per contactor, screw terminals and can mount on standard 35MM din rail or screwed down to the back of the panel. Two XTCR025C21TD contactors that are mechanically interlock comprise the XTCR025C21TD and come with line and load side wiring harnesses for easy and safe installation.
Catalog Page / Specifications
Catalog Page / Specifications
Stock - Can ship today if ordered prior to 4 p.m. EST
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32A
Plug-in accessories for reduced installation time
Coil replacement on Frames C–N (18–820A)
Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors
XTCR025C21TD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTCR025C21TD
$308.91
$810.00
Unit price
/
Unavailable

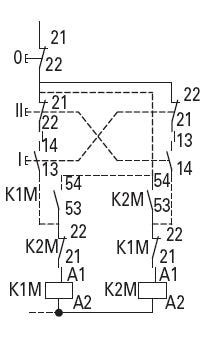

The XTCR line of IEC power control reversing contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCR025C21 reversing contactor set is comprised of two XTCE025C01 contactors mechanically and electrically interlocked for forward/reverse operation. These reversing contactors were developed with space restrictions in mind as the mechanical interlock does not increase the overall width of the unit, enabling it to fit in the most compact of areas. This Eaton XTCR set can be mounted on standard 35mm DIN rail or mounted to the back of the panel using the four mounting holes at the base of the unit.
Click here for a catalog page of this XTCR Reversing Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 2 | 5 | 7.5 | 7.5 | 15 | 20 | 25 | 40 | 3 | 0 | 2 | 1 | XTCR025C21TD | 24 volt DC |
