Eaton / Cutler Hammer | SKU:
XTCR015B21E
62% off
XTCR015B21E
$213.63
$557.00
Unit price
/
Unavailable
Shipping calculated at checkout.

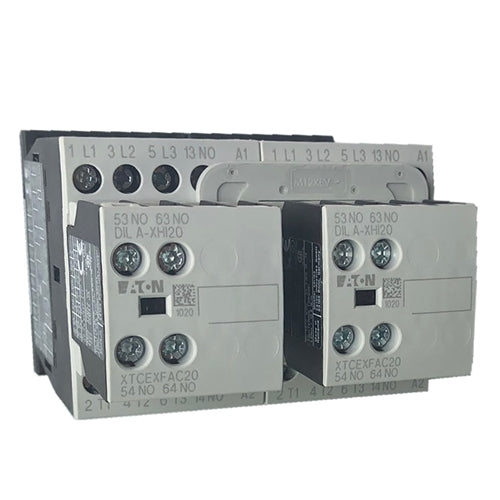

Eaton XTCR015B21E 15 AMP reversing contactor with a 208v60Hz AC coil. Rated 5 H.P. @ 230 volt, 10 H.P. @ 460 volt, this reversing contactor is comprised of two XTCE015B01E contactors mechanically and electrically interlocked and each comes with a top mounted 2 N.O. auxiliary. For complete motor protection, an XTOB overload relay can be added to the XTCR015B21E that has phase loss, over current and class 10 protection.
XTCR015B21E Datasheet
Country of Origin : Romania
Schedule B / H.T.S. : 8536.49.0065
XTCR015B21E Datasheet
Country of Origin : Romania
Schedule B / H.T.S. : 8536.49.0065
Out of Stock - Can ship in 1-2 weeks
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32A
Plug-in accessories for reduced installation time
Coil replacement on Frames C–N (18–820A)
Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors
XTCR015B21E is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTCR015B21E
$213.63
$557.00
Unit price
/
Unavailable

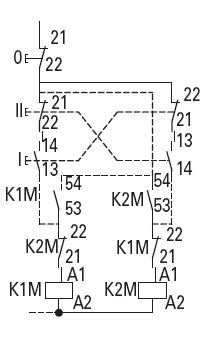

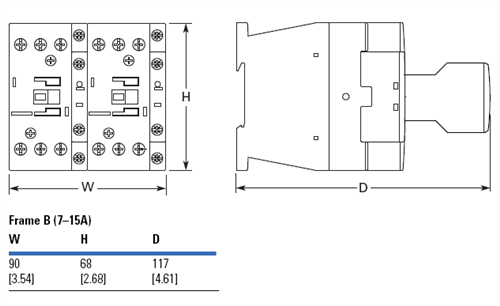

The XTCR line of IEC power control reversing contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCR012B21 reversing contactor set is comprised of two XTCE015B01 contactors mechanically and electrically interlocked for forward/reverse operation. These reversing contactors were developed with space restrictions in mind as the mechanical interlock does not increase the overall width of the unit, enabling it to fit in the most compact of areas. This Eaton XTCR set can be mounted on standard 35mm DIN rail or mounted to the back of the panel using the four mounting holes at the base of the unit.
Click here for a catalog page of this XTCR Reversing Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 1 | 3 | 5 | 5 | 10 | 10 | 15 | 20 | 3 | 0 | 2 | 1 | XTCR015B21E | 208v60Hz |
