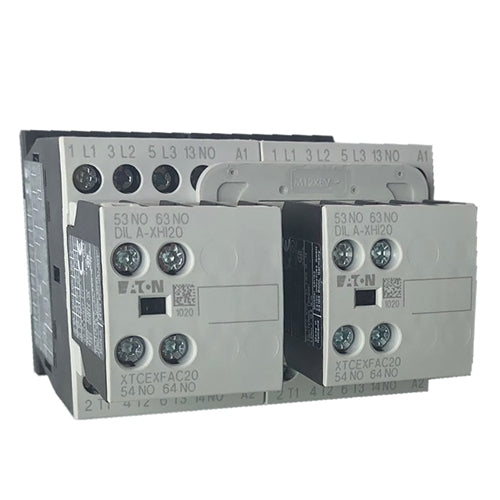

XTCR009B21TD

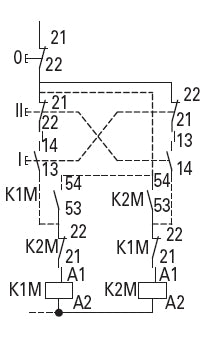

The XTCR line of IEC power control reversing contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCR009B21 reversing contactor set is comprised of two XTCE009B01 contactors mechanically and electrically interlocked for forward/reverse operation. These reversing contactors were developed with space restrictions in mind as the mechanical interlock does not increase the overall width of the unit, enabling it to fit in the most compact of areas. This Eaton XTCR set can be mounted on standard 35mm DIN rail or mounted to the back of the panel using the four mounting holes at the base of the unit.
