Eaton / Cutler Hammer  |  SKU: XTCE040D

XTCE040D

$190.33 $583.64
Shipping calculated at checkout.

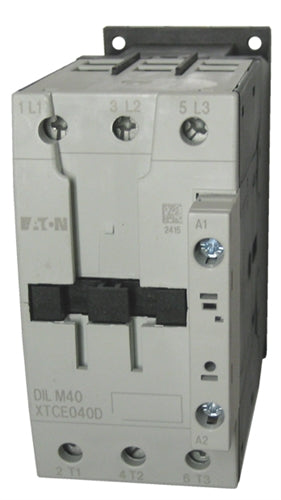

EATON XTCE040D 40 AMP contactor with an AC or DC rated coil (must choose voltage below). This contactor is 3 pole, is rated for 30 H.P. @ 460 volt (3-phase) and can be base mounted or installed on standard 35mm DIN rail

XTCE040D Datasheet

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

Standards : IEC/EN 60947, VDE 0660, UL, CSA, CCC, RoHS Mechanical life—operations : 10,000,000 Mechanical operating frequency (ops/hr) : 5000 Insulation voltage (Ui) Vac : 690 Operating voltage (Ue) Vac : 690 Degree of protection : IP00 Voltage Tolerance (Pickup) : (0.8-1.1)

AC control from 12V to 600V 50/60 Hz DC control from 12V to 220V Available with screw or spring cage terminals Reversing or non-reversing contactors and starters AC-3 contactor ratings to 1000A and AC-1 contactor ratings to 2000A Non-reversing starters to 650A Panel or DIN rail mounting to 65A IP20 finger and back-ofhandproof Large ambient temperature range, –25 to 50°C [–13 to 122°F]

eaton logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Eaton XTCE040D Size D IEC rated 3 pole contactors are the most durable, longest lasting contactors made today. The XTCE line is identical to the Klockner Moeller DILM line and is just as reliable. It is not uncommon for these contactors to last 10-15 years without needing to be replaced, thus saving both the time and expense of buying a new contactor. And with ranges from 40A up to 72A, all of your low voltage contactor needs can be met.

Click here for a catalog page of this XTCE Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
37.51015304060403000XTCE040D
