Eaton / Cutler Hammer | SKU:
XTCE015B10B
72% off
XTCE015B10B
$92.32
$324.89
Unit price
/
Unavailable
Shipping calculated at checkout.

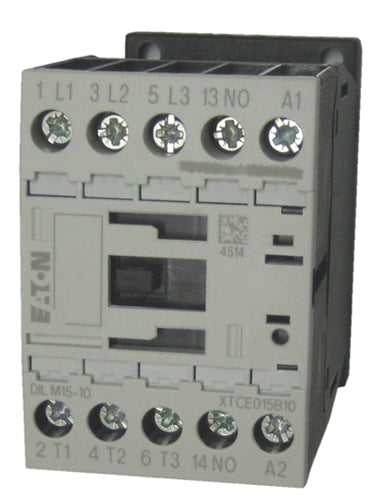

The Eaton XTCE015B10B is a 3 pole, 15 AMP electrical contactor with a 220v50Hz/240v60Hz AC rated coil and 1 normally open (N.O.) base mounted auxiliary contact. This UL/IEC rated contactor comes with screw terminals and can either be mounted on standard 35mm DIN rail or screwed to the back panel. Two and four pole front mounted auxiliary contact blocks can be added to the XTCE015B10B along with thermal overload relays for complete motor protection.
Product Datasheet
Product Datasheet
Ships same day up until 4 p.m. EST
5-7 days for item to ship for standard delivery
AC and DC controlled contactors in the same compact frame
Low power consumption AC and DC coils
Built-in NO or NC auxiliary contacts to 32A
Plug-in accessories for reduced installation time
Coil replacement on Frames C–N (18–820A)
Integrated suppressor 7–150A DC operated contactors and 185–2000A AC and DC operated contactors
XTCE015B10B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
XTCE015B10B
$92.32
$324.89
Unit price
/
Unavailable
The XTCE line of IEC power control contactors was engineered to provide highly effective control and protection for a variety of loads, including motors, compressors, pumps, resistive, capacitor banks, isolation, and others. The XTCE015B10 contactor also includes IEC ratings for lighting applications as well. XT is used by customers to enhance equipment safety using contactors and auxiliaries with “mirror contact” approval ratings.
NEED HELP FINDING THE COIL VOLTAGE?
Each contactor comes with a specific coil that matches the control voltage of your application. The most standard voltage in the United States is 120 volt, but others such as 24v, 208v and 240v are common. Always be sure of the coil voltage prior to ordering the contactor as any error will cause the contactor to malfunction and burn out almost immediately. Here is how to determine the coil voltage on this Eaton XTCE contactor: on the front of contactor you will see the voltage in the upper right hand corner just below two screw terminals. You can click here to see a picture of where to look. Please note that the line voltage (480v, 600v, etc) is often confused with the coil voltage. THESE ARE NOT the same. While coil voltages of 480v and 600v do exist, they are extremely rare.
NEED HELP FINDING THE COIL VOLTAGE?
Each contactor comes with a specific coil that matches the control voltage of your application. The most standard voltage in the United States is 120 volt, but others such as 24v, 208v and 240v are common. Always be sure of the coil voltage prior to ordering the contactor as any error will cause the contactor to malfunction and burn out almost immediately. Here is how to determine the coil voltage on this Eaton XTCE contactor: on the front of contactor you will see the voltage in the upper right hand corner just below two screw terminals. You can click here to see a picture of where to look. Please note that the line voltage (480v, 600v, etc) is often confused with the coil voltage. THESE ARE NOT the same. While coil voltages of 480v and 600v do exist, they are extremely rare.
Click here for a catalog page of this XTCE Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 1 | 2 | 5 | 5 | 10 | 10 | 15 | 20 | 3 | 0 | 1 | 0 | XTCE015B10B | 220v50Hz/240v60Hz |
