Square D / Telemecanique | SKU:
Square-D-9007C66B2
55% off
9007C66B2
$107.94
$241.00
Unit price
/
Unavailable
Shipping calculated at checkout.

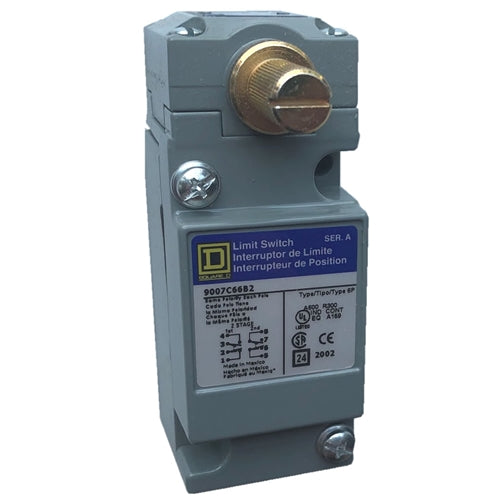

Square D 9007C66B2 limit switch with standard box metal housing and standard pre-travel spring return lever for use in oiltight/watertight applications. This two pole switch comes with 2 N.O./2 N.C. snap action contacts, IP67 enclosure that is submersible, and 1 1/2" - 14 NPT bottom cable entry for wiring.
Country of Origin : Mexico
H.S. Code : 8536.50.9025
Country of Origin : Mexico
H.S. Code : 8536.50.9025
Out of Stock - Can ship in 2-3 weeks
Head Type : Rotary
Enclosure : Metal
Switch Actuation : clockwise and counter-clockwise
Terminals : Screw clamp
Cable Entry : 1 (1/2" - 14 NPT)
Number of Poles : 1
Contacts : Snap Action
Contact Form : Form Z
Lifetime : 1,000,000 electrical and mechanical operations
Width : 1.55 inches
Height : 4.02 inches
Depth : 2.5 inches
Weight : 1.25 lbs.
IP protection : IP67
Enclosure : Metal
Switch Actuation : clockwise and counter-clockwise
Terminals : Screw clamp
Cable Entry : 1 (1/2" - 14 NPT)
Number of Poles : 1
Contacts : Snap Action
Contact Form : Form Z
Lifetime : 1,000,000 electrical and mechanical operations
Width : 1.55 inches
Height : 4.02 inches
Depth : 2.5 inches
Weight : 1.25 lbs.
IP protection : IP67
9007C66B2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
9007C66B2
$107.94
$241.00
Unit price
/
Unavailable
The Schneider Electric 9007 line of oil-tight and water-tight limit switches has the versatility both in electrical makeup and physical operation to meet the needs of any application. The standard Square D 9007C66B2 is housed in a metal body that provides an IP67 level of protection, which allows for the switch to be submersible in water for up to 30 minutes. This metal housing can withstand a higher level of abuse that its plastic counterparts cannot, thus extending the lifespan in rugged environments.
The standard rotary head included with each Square D limit switch allows for clockwise and counter-clockwise operation that actuates after a rotation of only 10 degrees for up to a total of 90 degrees. Each unit has two poles with 1 normally open and 1 normally closed contact set and has a lifespan mechanically and electrically of 1,000,000 operations.
The 9007 series limit switches offer screw clamp terminals for electrical connection, 1 cable entry for 1/2"-14 NPT, and snap action contacts that has become the industry standard. IMC-Direct carries the entire line of Schneider heavy duty limit switches in stock for fast delivery at the industries lowest prices.
The standard rotary head included with each Square D limit switch allows for clockwise and counter-clockwise operation that actuates after a rotation of only 10 degrees for up to a total of 90 degrees. Each unit has two poles with 1 normally open and 1 normally closed contact set and has a lifespan mechanically and electrically of 1,000,000 operations.
The 9007 series limit switches offer screw clamp terminals for electrical connection, 1 cable entry for 1/2"-14 NPT, and snap action contacts that has become the industry standard. IMC-Direct carries the entire line of Schneider heavy duty limit switches in stock for fast delivery at the industries lowest prices.
