1 4
Lovato  |  SKU: SM1P0063
62% off

SM1P0063

$76.20 $199.00
Shipping calculated at checkout.

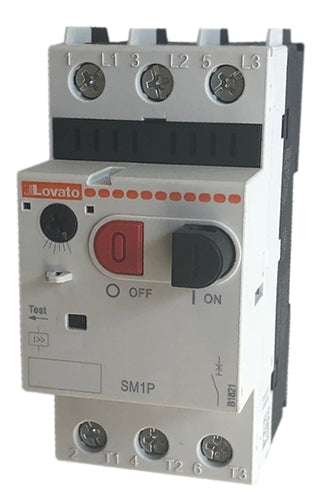

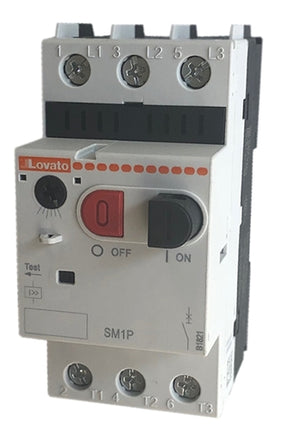

Lovato Electric SM1P0063 manual motor starter/protector with possible adjustment ranges from 0.40 to 0.63 AMPS - phase loss sensitivity and class 10 tripping (trips in 10 seconds or less) - screw terminals, DIN rail mounting and optional accessories including auxiliary contacts, undervoltage trips and flush or surface mounted enclosures

Catalog Page / Specifications

Out of Stock - Can ship in 3-4 days

Wide adjustment range from 0.1 to 100A Breaking capacity Icu 50kA (400V) up to 100A Suitable for isolation Comprehensive line of accessories Front mount contacts Automatic trip indicators High reliability and accuracy of tripping.

lovato logo

SM1P0063 is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Lovato SM1P series of manual motor protectors offers AMP ranges from 0.10 up to 40 AMPS in one small, compact frame size for installation in most enclosures. These motor protection circuit breakers offer thermal and magnetic trip releases with a high breaking capacity suitable for isolation installation. A simple adjustment dial, screw terminals and DIN rail mounting provides for the easiest installation and removal which reduces down time and lowers costs associated with replacement. Optional auxiliary contacts and under voltage trips make the Lovato SM1P0063 one of the most versatile manual motor starters on the market today.

  • IEC rated insulation voltage Ui: 690V
  • IEC rated frequency: 50/60Hz
  • Maximum rated current: 40A
  • Magnetic tripping: 13In max.
  • Tripping class: 10A
  • Phase failure sensitive
  • Mechanical life: 100,000 cycles
  • Electrical life: 100,000 cycles
  • Mounting on 35mm DIN rail
  • IEC degree of protection: IP20
Click here for a catalog page on the SM1P manual motor protector
