Lovato | SKU:
SM1P0025
62% off
SM1P0025
$76.20
$199.00
Unit price
/
Unavailable
Shipping calculated at checkout.

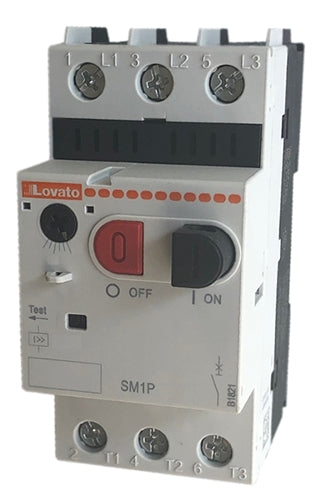

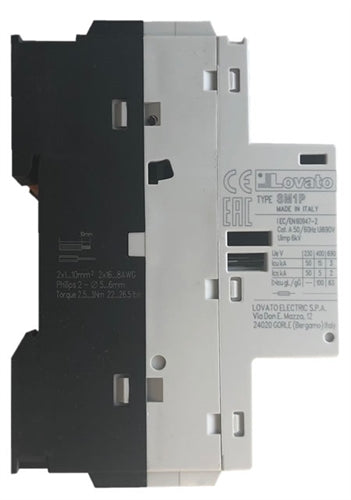

Lovato Electric SM1P0025 manual motor starter/protector with possible adjustment ranges from 0.16 to 0.25 AMPS - phase loss sensitivity and class 10 tripping (trips in 10 seconds or less) - screw terminals, DIN rail mounting and optional accessories including auxiliary contacts, undervoltage trips and flush or surface mounted enclosures
Catalog Page / Specifications
Catalog Page / Specifications
Stock - Can ship today if ordered prior to 4 p.m. EST
Wide adjustment range from 0.1 to 100A
Breaking capacity Icu 50kA (400V) up to 100A
Suitable for isolation
Comprehensive line of accessories
Front mount contacts
Automatic trip indicators
High reliability and accuracy of tripping.
SM1P0025 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
SM1P0025
$76.20
$199.00
Unit price
/
Unavailable
The Lovato SM1P series of manual motor protectors offers AMP ranges from 0.10 up to 40 AMPS in one small, compact frame size for installation in most enclosures. These motor protection circuit breakers offer thermal and magnetic trip releases with a high breaking capacity suitable for isolation installation. A simple adjustment dial, screw terminals and DIN rail mounting provides for the easiest installation and removal which reduces down time and lowers costs associated with replacement. Optional auxiliary contacts and under voltage trips make the Lovato SM1P0025 one of the most versatile manual motor starters on the market today.
- IEC rated insulation voltage Ui: 690V
- IEC rated frequency: 50/60Hz
- Maximum rated current: 40A
- Magnetic tripping: 13In max.
- Tripping class: 10A
- Phase failure sensitive
- Mechanical life: 100,000 cycles
- Electrical life: 100,000 cycles
- Mounting on 35mm DIN rail
- IEC degree of protection: IP20
