Siemens  |  SKU: Siemens-3RV2011-1KA10
36% off

3RV2011-1KA10

$114.98 $179.00
Shipping calculated at checkout.

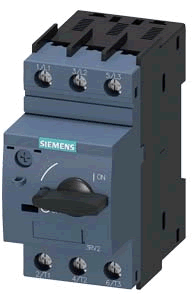

Siemens 3RV2011-1KA10 Manual Motor Starter/Overload Protector that is adjustable from 9 to 12.5 AMPS, mounts on DIN rail and has a Class 10 tripping characteristic and screw termination. This Siemens motor protector has single phase sensitivity (phase loss protection), screw terminals and is the electrical replacement for the now obsolete 3RV1011-1KA10.

3RV2011-1KA10 Datasheet

Stock - Can ship today if ordered prior to 4 p.m. EST

ON/OFF rotary handle with lockout and visible trip indication. Adjustment dial for setting to motor FLA. Class 10 overload trip characteristics. Short circuit trip at 12 times the maximum setting of the FLA adjustment dial. Short circuit current rating: Ambient compensated up to 140° F (applies to side by side mounting). Phase loss sensitivity. Test trip function.

siemens logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The 3RV2011 MSP’s are UL approved as Self Protected Combination Motor Controllers which are also called Type E. In this application, all the required functions for a motor branch are provided in one device: disconnect, short circuit protection, motor control and overload protection. A type E terminal adapter is required. These Siemens Motor Protectors are also approved for use as follows:

– Manual Motor Controller: Motor starter, motor disconnect, control and overload protection.
– Group Installation: Motor starter only, motor disconnect, control and overload protection.
– Tap conductor Protection in Group Installation acc. NEC: Motor starter only;motor disconnect, control and overload protection.
Click here for a catalog page of this 3RV2 Manual Motor Starter
