GE Industrial  |  SKU: RT2A
Obsolete

RT2A

$0.00
Shipping calculated at checkout.

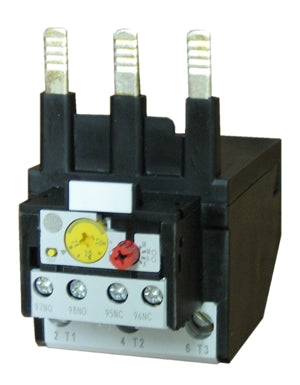

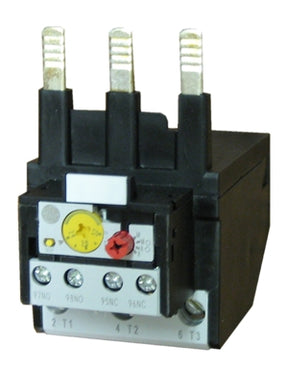

GE RT2A thermal overload relay that is adjustable from 11.5 to 15 AMPS and comes with manual or automatic reset. This Class 10 overload (trips in 10 seconds or less) comes standard with 1 normally open 1 normally closed auxiliary contacts and single phase sensitivity, which trips when a phase is lost. The GE RT2A mounts directly to any CL06, CL07, CL08, CL09 or CL10 3 pole contactor and provides complete motor protection for motors up to 15 AMPS.

Need a slightly higher AMP range? Try the RT2B which adjusts up to 19 AMPS.

Catalog Page / Specifications

Obsolete - Please call for replacement

ge logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

GE offers a line of RT2 overload relays that directly mount to the GE CL line of contactors from 30-50 H.P. (CL06-CL08). Each overload relay has Class 10 tripping characteristics, is 3-pole with phase loss protection, Manual or Automatic Reset and two independent double break contacts. These RT2 overloads directly mount to the load side of any GE contactor and have an adjustable dial with ranges from 11.5 AMPS up to 110 AMPS, depending on the motors Full Load AMPS (FLA).

Click here for a catalog page of this GE Overload
