GE Industrial | SKU:
RL4RA031TN
Obsolete
RL4RA031TN
Regular price
$0.00
Unit price
Shipping calculated at checkout.

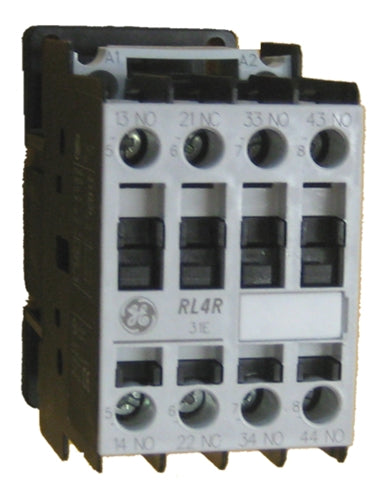

GE Industrial RL4RA031TN 4-pole, 10 AMP control relay with 3 N.O. / 1 N.C. contacts and a 277v50/60Hz AC coil. The RL4R can be mounted on standard 35mm DIN rail and up to 4 poles of auxiliaries can be added totaling 8 poles for switching purposes.

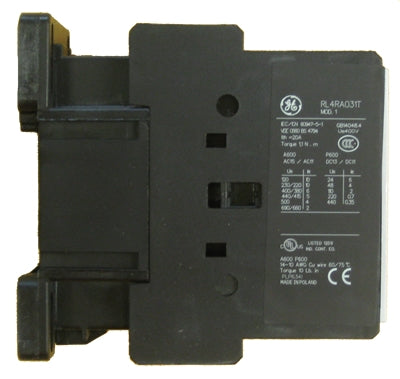

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this relay.
RL4RA031TN Datasheet
Country of Origin : Poland
H.T.S. Code : 8536.49.0065
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this relay.
RL4RA031TN Datasheet
Country of Origin : Poland
H.T.S. Code : 8536.49.0065
Obsolete - Please see link above for replacement
Broad line offers wide array of control relays to meet most application needs from 5-500 HP at 460 volts.
Common snap in accessories gives greater design versatility with lower inventory. Finger and back of hands protected for greater safety
Available with Ring Terminal Connections
AC and DC coils available for a wide range of voltages
Pre-assembled reversing forms available
RL4RA031TN is backordered and will ship as soon as it is back in stock.
