Other  |  SKU: PKZM0-10

PKZMO-10

$104.07 $290.00
Shipping calculated at checkout.

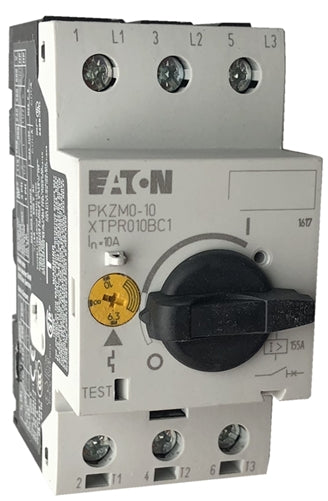

Moeller PKZM0-10 Manual Motor Protector - standard 35mm DIN rail mounted and is adjustable from 6.3-10 AMPS - Class 10 protection (unit trips in 10 seconds or less) - rotary ON/OFF handle and screw terminals

PKZM0-10 Datasheet

Need a slightly lower AMP range? Click here to see the PKZM0-6.3
Need a slightly higher AMP range? Click here to see the PKZM0-16

Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

Degree of Protection : IP20 Rated Impulse Withstand Voltage : 690v Rated Frequency : 40-60Hz Lifespan, Electrical : 100,000 operations Lifespan, Mechanical : 100,000 operations Short Circuit Release Tolerance : +/- 20% Type E rated when used with DILM contactor

Approved by UL 508/CSA C 22.2 No. 14 for use as a manual starter, tap conductor protector and type E self-protected combination motor controller Suitable for use in group motor applications Common accessories with PKZM01, PKZM0-T and PKZM4 series helps reduce inventories Phase failure sensitive and ambient temperature compensated Rotary handle operation

eaton moeller logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

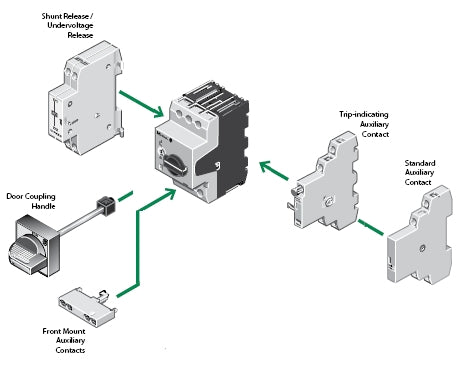

The PKZM0 manual motor protector series by Moeller features adjustable bi-metal thermal trips and a fixed magnetic trip of 14x rated uninterrupted current. This provides superior protection for standard and high efficiency motors. These motor starters have a broad range of accessories to expand your control scheme options. All parts are interchangeable, simplifying ordering and reducing inventory. Auxiliary contact modules can be fitted without any tools and provide fail-safe information about each switching state. This also applies to the NHI-E auxiliary contact module that fits within the PKZM0 without increasing its overall width.

Click here for a catalog page of this PKZM0 Manual Motor Protector
