Square D / Telemecanique  |  SKU: LC2D50AM7

LC2D50AM7

$370.78 $596.00
Shipping calculated at checkout.

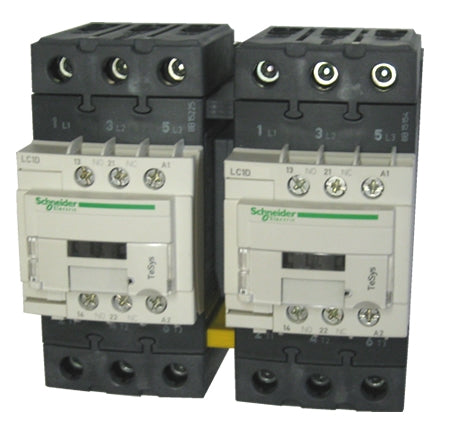

LC2D50AM7 Schneider Electric 50 AMP, 3 pole reversing contactor with a 220 volt AC rated coil - Rated for 15 H.P @ 230 volt, 40 H.P. @ 460 volt 3 Phase and has 2 N.O. and 2 N.C. base mounted auxiliary contacts - reversing set consists of 2 pieces LC1D50AM7, mechanical and electrical interlocks with line and load side wiring harnesses

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Rated insulation voltage (Vi) : 690v UL/CSA Rated impulse withstand voltage (Vimp) : 8kV Conforming to standards : IEC 60947-1, 60947-4-1, VDE 0660, EN 60947-1, EN 60947-4-1. Degree of protection : Protection against direct finger contact IP 2X Ambient air temperature around the device : - 5 to + 55 °C (+23 to +131 °F) Rated operational voltage (Ve) : 1000V Control voltage limits : 0.85 to 1.1 Vac at 60 Hz Average consumption at 20 °C (68 °F) and at Vc : 220VA Mechanical durability of operating cycles : 16,000,000 Mechanical life at Uc : 30,000,000

D-line contactors and overload relays are available in 11 contactor ratings for the USA market for inductive motor applications up to 150 full-load amps and resistive loads up to 200 A. They offer motor control and overload protection for motors rated up to 100 hp at 480 Vac or 125 hp at 600 Vac. 3-pole and 4-pole contactor versions available. All contactors include built-in auxiliary contacts. All screw connections have IP20 rated touch-safe terminals with both North American and International terminal markings. D-line contactors can be panel mounted with screws or DIN rail mounted.

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Schneider Electric (formerly Square D and Telemecanique) has introduced a new style to the low voltage D-line reversing contactors. These 40-65 AMP reversing contactors have the narrowest profile of any contactor this size in the industry. These new LC2D slim line contactors are only 2.17 inches wide, as compared to the standard 3 inches wide of normal contactors for this AMP size. This lowers cost by reducing panel size for both small starters as well for your complex UL panel application.



MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
37.51515404050703022LC2D50AM7220v50/60Hz
