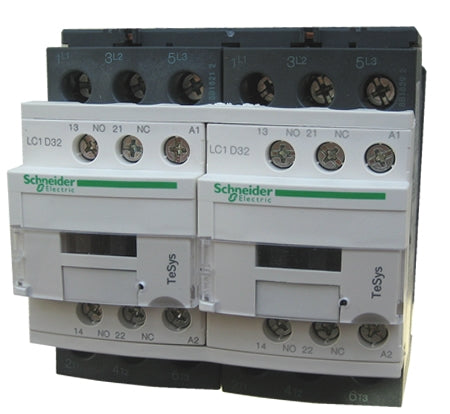

LC2D32D7
Schneider Electric offers a line of 3 pole reversing contactors that are the standard for the industrial motor control industry. The TeSys line of LC2D contactors is unique as it offers electrical and mechanical interlocks all in one unit while not increasing the size of the contactors. Each LC1D contactor fits side-by-side and the mechanical interlock does not add any additional width to your set, making it perfect where space is essential. And with 1 frame size covering from 9-32 AMPS, all with interchangable accessories and coils, the Schneider Electric LC2D line is perfect for any motor control application.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 2 | 5 | 10 | 10 | 20 | 30 | 32 | 50 | 3 | 0 | 1 | 1 | LC2D32D7 | 42v50/60Hz |
