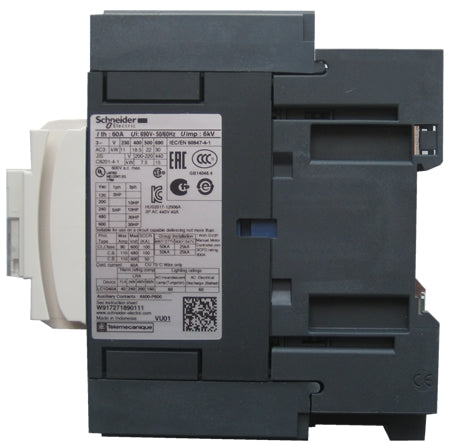

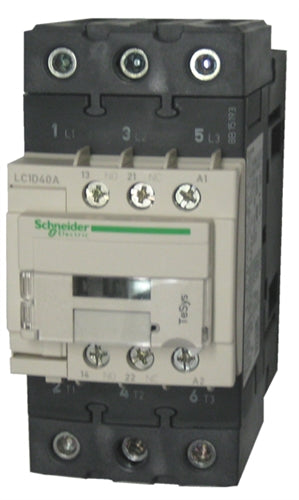

LC1D40AM7

The Schneider Electric LC1D40AM7 is a 40 AMP, 3 pole contactor with a 220v50/60Hz AC coil. This IEC/UL contactor is rated for 10 H.P. @ 230 volt, 30 H.P. @ 460 volt 3 Phase and has 1 normally open and 1 normally closed base mounted auxiliary contacts. Two and four pole auxiliary contacts can be added to the LC1D40AM7 for additional signalling while thermal overload relays can be directly mounted for complete motor protection.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Looking for a higher rated contactor in the same series? Try the LC1D50AM7 which has the same dimensions but is rated for 50 AMPS and can handle higher loads.

D-line contactors and overload relays are available in 11 contactor ratings for the USA market for inductive motor applications up to 150 full-load amps and resistive loads up to 200 A. They offer motor control and overload protection for motors rated up to 100 hp at 480 Vac or 125 hp at 600 Vac. 3-pole and 4-pole contactor versions available. All contactors include built-in auxiliary contacts. All screw connections have IP20 rated touch-safe terminals with both North American and International terminal markings. D-line contactors can be panel mounted with screws or DIN rail mounted.
