Square D / Telemecanique  |  SKU: LC1D258
51% off

LC1D258

$119.41 $246.00
Shipping calculated at checkout.

Schneider Electric LC1D258 25 AMP contactor with an AC coil (must specify voltage below) -- 4 pole, 2 N.O. and 2 N.C. power poles IEC style DIN rail mounted contactor. Comes standard with 1 N.O. and 1 N.C. base mounted auxiliary contacts and screw terminals.

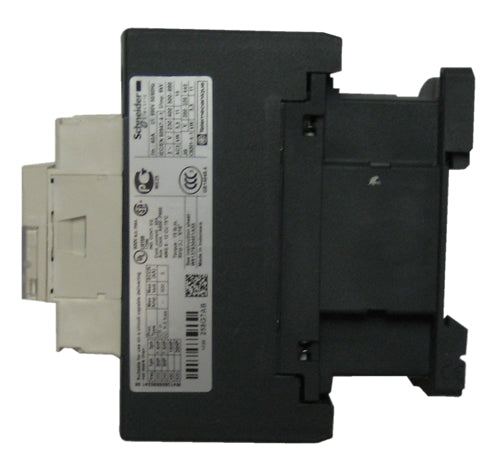

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Ships same day up until 4 p.m. EST

Rated insulation voltage (Vi) : 600V UL/CSA Rated impulse withstand voltage (Vimp) : 6 kV Conforming to standards : IEC 60947-1, 60947-4-1, VDE 0660,EN 60947-1, EN 60947-4-1 Degree of protection : IP 2X Operating positions : ± 30° possible, in relation to normal vertical mounting plane Rated control circuit voltage (Vc) : 21 to 660 Mechanical durability in millions of operating cycles : 15

Easily Installed Accessories Auxiliary contact blocks with serrated wiping action Front mount dust tight auxiliary contact blocks Pneumatic time delay blocks Transient voltage surge suppressors Interface modules and electronic timers Mechanical latching blocks

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The LC1D258 4 pole contactor is part of the largest selling line of contactors and starters in the world. This contactor offers high reliability with long mechanical and electrical life and the most complete line of accessories in the industry.

Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often times you will not need to purchase any additional auxiliary contact blocks

One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of this contactor. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.
