Square D / Telemecanique  |  SKU: LC1D18

LC1D18

$95.17 $163.20
Shipping calculated at checkout.

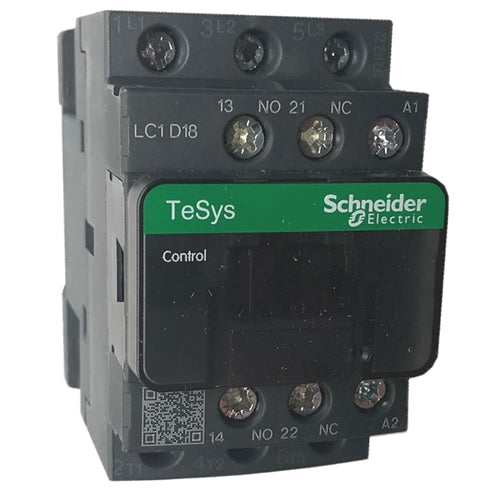

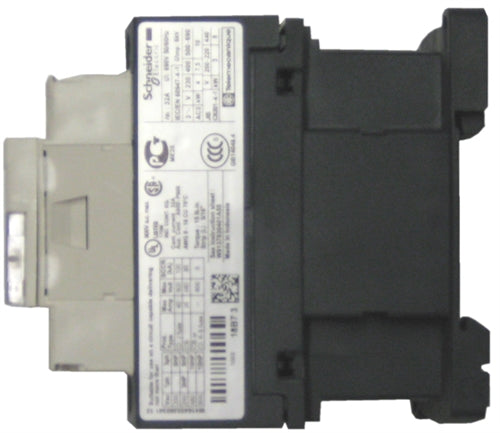

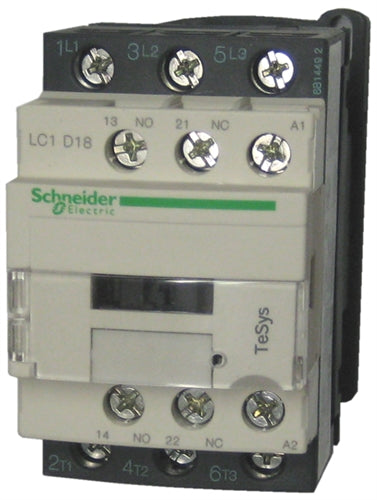

LC1D18 Schneider Electric 18 AMP contactor with an AC or DC rated coil (must specify the voltage below) -- 3 pole, 10 H.P. @ 460v 3 Phase IEC style DIN rail mounted contactor -- Suitable replacement for the LC1D1810 or LC1D1801 - LRD 3 phase overload relays can be added along with top and side-mounted auxiliaries for up to 6 additional poles. Order a Schneider LC1D18 online at IMC-Direct!


Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.



Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

Rated insulation voltage (Vi) : 600V UL/CSA Rated impulse withstand voltage (Vimp) : 6 kV Conforming to standards : IEC 60947-1, 60947-4-1, VDE 0660,EN 60947-1, EN 60947-4-1 Degree of protection : IP 2X Operating positions : ± 30° possible, in relation to normal vertical mounting plane Rated control circuit voltage (Vc) : 21 to 660 Mechanical durability in millions of operating cycles : 15

Easily Installed Accessories Auxiliary contact blocks with serrated wiping action Front mount dust tight auxiliary contact blocks Pneumatic time delay blocks Transient voltage surge suppressors Interface modules and electronic timers Mechanical latching blocks

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Schneider Electric LC1D18 contactor is part of the largest selling line of contactors and starters in the world. The LC1D18 offers high reliability with long mechanical and electrical life and the most complete line of accessories in the industry.


Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often you will not need to purchase any additional auxiliary contact blocks


One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of the Schneider LC1D18. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.


MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
1355101518323011LC1D18
