Square D / Telemecanique | SKU:
LC1D12LE7
41% off
LC1D12LE7
$84.03
$142.80
Unit price
/
Unavailable
Shipping calculated at checkout.

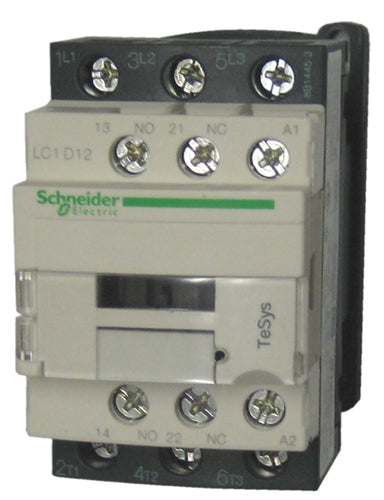

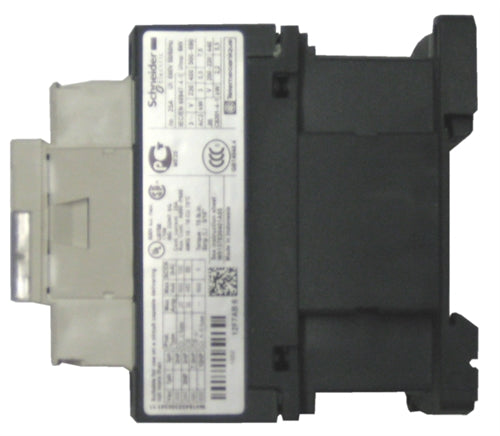

LC1D12LE7 Schneider Electric 12 AMP contactor with a 208v50/60Hz AC coil -- 3 pole, 7.5 H.P. @ 460v 3 Phase IEC style DIN rail mounted contactor -- Suitable replacement for the LC1D1210L7 or LC1D1201L7 - LRD 3 phase overload relays can be added along with top and side mounted auxiliaries for up to 6 additional poles
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
Ships same day up until 4 p.m. EST
1-2 days for item to ship for standard delivery
Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse
Easily Installed Accessories
Auxiliary contact blocks with serrated wiping action
Front mount dust tight auxiliary contact blocks
Pneumatic time delay blocks
Transient voltage surge suppressors
Interface modules and electronic timers
Mechanical latching blocks
LC1D12LE7 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
LC1D12LE7
$84.03
$142.80
Unit price
/
Unavailable
The LC1D12 contactor is part of the largest selling line of contactors and starters in the world. The LC1D12LE7 offers high reliability with long mechanical and electrical life and the most complete line of accessories in the industry.
Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often times you will not need to purchase any additional auxiliary contact blocks
One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of the LC1D12. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.
Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often times you will not need to purchase any additional auxiliary contact blocks
One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of the LC1D12. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 1 | 2 | 3 | 3 | 7.5 | 10 | 12 | 25 | 3 | 0 | 1 | 1 | LC1D12LE7 | 208V AC |
