Square D / Telemecanique  |  SKU: LC1D09
40% off

LC1D09

$68.07 $112.80
Shipping calculated at checkout.

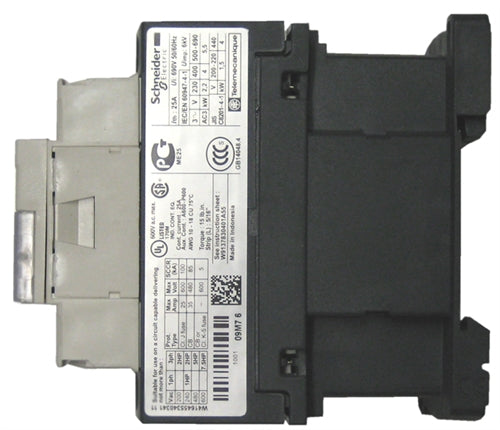

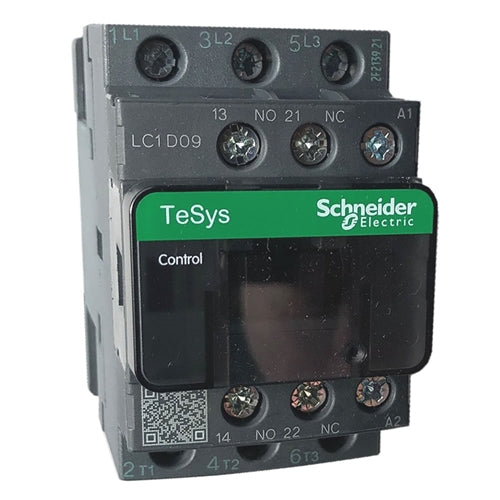

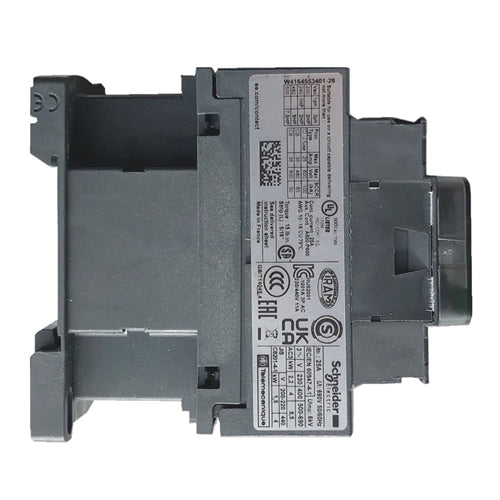

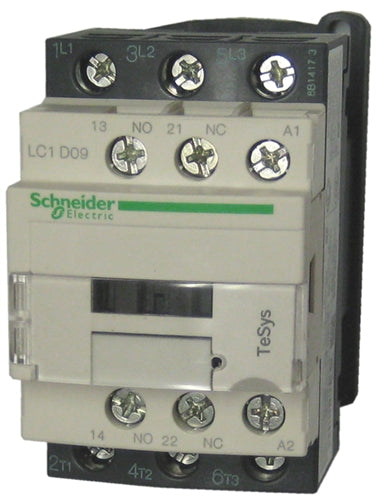

Schneider Electric LC1D09 9 AMP contactor with a AC or DC rated coil (must specify voltage below) -- 3 pole, 5 H.P. @ 460v 3 Phase IEC style DIN rail mounted contactor - comes standard with 1 N.O. and 1 N.C. base mounted auxiliary contacts -- Suitable replacement for the LC1D0910 or LC1D0901


Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

Stock - Can ship today if ordered prior to 4 p.m. EST

Rated insulation voltage (Vi) : 600V UL/CSA Rated impulse withstand voltage (Vimp) : 6 kV Conforming to standards : IEC 60947-1, 60947-4-1, VDE 0660,EN 60947-1, EN 60947-4-1 Degree of protection : IP 2X Operating positions : ± 30° possible, in relation to normal vertical mounting plane Rated control circuit voltage (Vc) : 21 to 660 Mechanical durability in millions of operating cycles : 15

Easily Installed Accessories Auxiliary contact blocks with serrated wiping action Front mount dust tight auxiliary contact blocks Pneumatic time delay blocks Transient voltage surge suppressors Interface modules and electronic timers Mechanical latching blocks

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Telemecanique LC1D09 contactor is part of the largest selling line of contactors and starters in the world. It offers high reliability with long mechanical and electrical life and the most complete line of accessories in the industry.


Square D is one of the only manufacturers that produce these contactors with 1 normally open and 1 normally closed base contact so often times you will not need to purchase any additional auxiliary contact blocks


One of the greatest aspects of this contactor is its versatility. LRD Overload relays can be easily added as they are directly mounted to the load side of this 9 AMP contactor. LADN auxiliary contact blocks are simply snapped onto the top of the contactor, giving you configurations from 2 through 4 poles of additional contacts.

MAXIMUM HORSEPOWER MAXIMUM CURRENT # OF POLES AUXILIARY
CONTACTS 		CATALOG # COIL
VOLTAGE
Single Phase Three Phase Inductive
AC-1 (A) 		Resistive
AC-3 (A) 		N.O. N.C. N.O. N.C.
115v HP 230v HP 200v HP 230v HP 460v HP 575v HP
0.15 1 2 2 5 7.5 9 20 3 0 1 1 LC1D09
