GV3P50

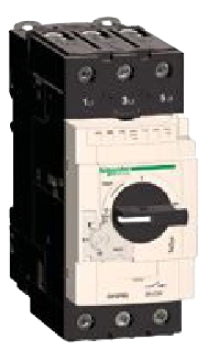

Schneider Electric offers a UL 508 Type E Self Protected Manual Motor starter in the GV3 series that has adjustable AMP ranges from 9-65A. Each unit is comprised of a manual rotary disconnect, Class 10 thermal overload relay and an instantaneous, magnetic trip mechanism and is DIN rail mounted. The GV3 Manual Motor Protector has a slim design to fit into any application and also screw terminals for easy installation.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | |||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | |||||||
| 3 | 7.5 | 10 | 10 | 30 | 40 | 50 | 50 | 3 | 0 | 0 | 0 | GV3P50 |
