Square D / Telemecanique  |  SKU: GV2ME32

GV2ME32

$106.85 $224.00
Shipping calculated at checkout.

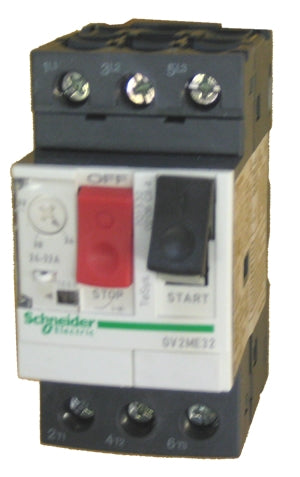

Schneider Electric GV2ME32 Manual Motor Starter adjustable from 24-32 AMPS -- ON/OFF pushbutton operation and mounts on standard 35mm DIN rail -- manufacturers suggested replacement for GV2M01

Need a slightly lower AMP range? Click here to see the GV2ME22

Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

Rated operational voltage (Ue) : 690v Rated impulse withstand voltage (U imp) : 6 kV Mechanical life (close-open operations) : 100,000 Electrical life (close-open operations) : 100,000 Degree of protection : IP55 Padlocking : Padlocks in the Off position using the system incorporated into the manual control device.

UL 508 Listed, IEC/EN 60947-1, 60947-2, 60947-4-1, CSA C 22.2 n° 14-05 type ECSA Certified, and CE Marked UL Listed for group motor applications Overload relay, Class 10, ambient-compensated, bimetallic Single-phase sensitivity Magnetic, instantaneous short-circuit protection Test-trip mechanism Provision for padlocking in the Off position Finger-safe terminals meet IP20 standards and IEC 60529 North American and European terminal markings

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Schneider Electric offers a complete line of products for the manual control and protection of motors. This catalog covers those devices designed to meet IEC standards for protection and control. The GV2ME32 manual starter and protector provides manual isolation, manual motor control, and overcurrent protection in one compact unit. The GV2 series has a standard set of accessories, including front mounted GVAE11 auxiliary contacts, side mounted GVAN11 auxiliary contacts as well as undervoltage trips to complete the unit.

Click here for a catalog page of this GV2ME Manual Motor Protector
