Square D / Telemecanique  |  SKU: GV2ME21

GV2ME21

$106.85 $224.00
Shipping calculated at checkout.

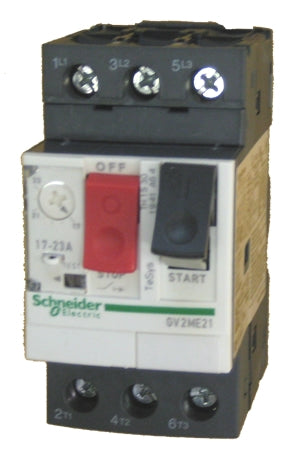

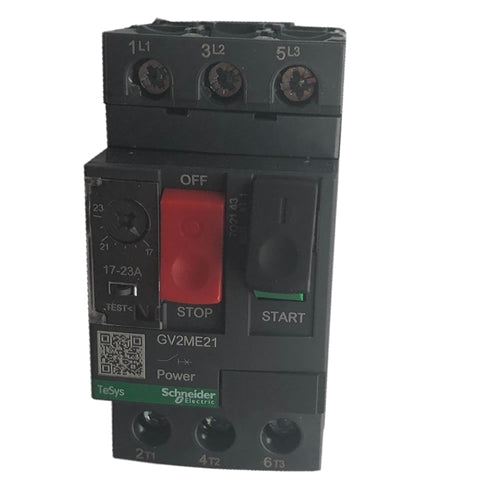

Schneider Electric GV2ME21 Manual Motor Starter adjustable from 17-23 AMPS -- ON/OFF pushbutton operation and mounts on standard 35mm DIN rail -- manufacturers suggested replacement for GV2M21

Need a slightly lower AMP range? Click here to see the GV2ME20
Need a slightly higher AMP range? Click here to see the GV2ME22

Ships same day up until 4 p.m. EST

1-2 days for item to ship for standard delivery

Can be shipped direct from manufacturer for next day delivery if out of stock at IMC-DIRECT warehouse

Rated operational voltage (Ue) : 690v Rated impulse withstand voltage (U imp) : 6 kV Mechanical life (close-open operations) : 100,000 Electrical life (close-open operations) : 100,000 Degree of protection : IP55 Padlocking : Padlocks in the Off position using the system incorporated into the manual control device.

UL 508 Listed, IEC/EN 60947-1, 60947-2, 60947-4-1, CSA C 22.2 n° 14-05 type ECSA Certified, and CE Marked UL Listed for group motor applications Overload relay, Class 10, ambient-compensated, bimetallic Single-phase sensitivity Magnetic, instantaneous short-circuit protection Test-trip mechanism Provision for padlocking in the Off position Finger-safe terminals meet IP20 standards and IEC 60529 North American and European terminal markings

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The Schneider Electric GV2ME21 Manual Motor starter is adjustable from 17-23 AMPS and has thermal magnetic protection (bimetallic Class 10) along with screw termination and DIN rail mounting for easy installation. Adjusting the overload dial is easy with the use of a screwdriver which can also be used to trip test the unit. When used with the appropriate LC1D contactor, the GV2ME21 can be used in group installation when protected by fuses or inverse time circuit breakers.
