GE Industrial  |  SKU: EC25A311B480

EC25A311B480

$68.04 $157.00
Shipping calculated at checkout.

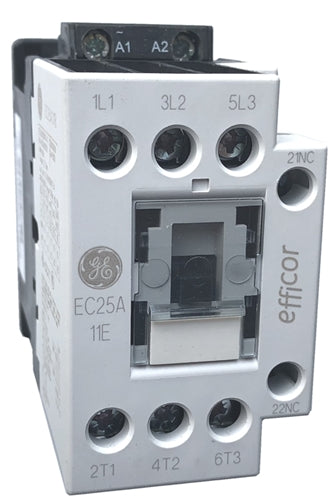

GE EFFICOR EC25A311B480 3-pole, 25 AMP contactor with a 480 volt AC coil. The EC25A311B480 is rated for 15 H.P. @ 460v 3 Phase, can be mounted on standard 35mm DIN rail and comes with 1 normally open and 1 normally closed contact set.

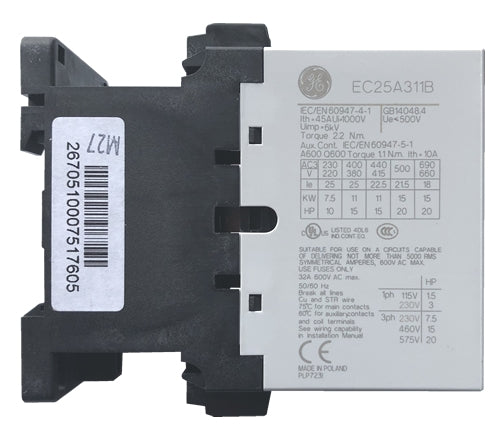

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

EC25A311B Datasheet

Out of Stock - 1-2 weeks to ship

267054

Broad line offers wide array of contactors to meet most application needs from 5-500 HP at 460 volts. Common snap in accessories gives greater design versatility with lower inventory. Overload relays available in class 10, 20, and 30 with four set 40 function. Manual reset only overload to meet automotive requirements Finger and back of hands protected for greater safety Available with Ring Terminal Connections AC and DC coils available for a wide range of voltages Pre-assembled reversing forms available

ge logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

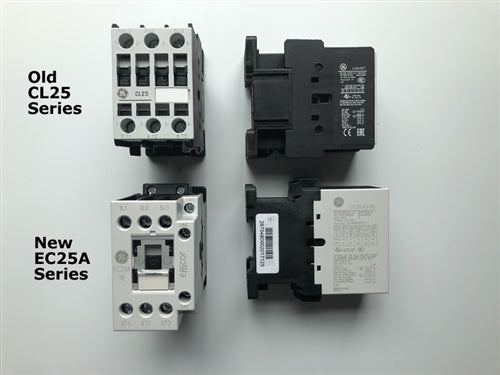

The new GE Efficor line of IEC and UL rated contactors offers the most up-to-date technology in the smallest and compact sizing available in the market today. Each contactor from 9 AMP up to 40 AMP includes a set of normally open and normally closed base mounted auxiliary contacts that reduces complexity, minimizes space requirements and keeps cost low. When replacing the previous CL25A300T series with the new EC25A311B series, there is no change in size making the conversion from old to new as simple as any standard replacement.

Click here for a catalog page of this GE Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
1.5357.5152045253011EC25A311B480480v50/60Hz
