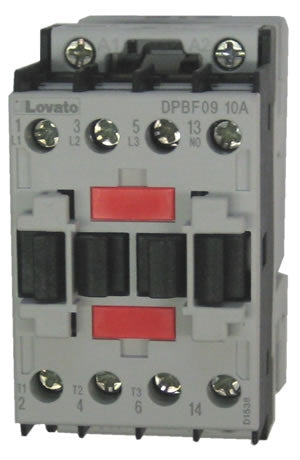

DPBF0910A57560
The Lovato Electric line of 3-pole, definite purpose contactors provide a cost-effective and reliable solution for contactor needs. Each contactor comes with a base auxiliary contact, either normally open or normally closed, in addition to three power poles. The DPBF series is rated up to 690v and has coil voltages ranging from 24vAC to 575vAC. These definite purpose contactors can also be fitted with the standard RF overload relays to provide complete motor protection.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 1.5 | 3 | 5 | 5 | 10 | 10 | 9 | 20 | 3 | 0 | 1 | 0 | DPBF0910A57560 | 575v60Hz |
