Other  |  SKU: DILM150-XHI13
60% off

DILM150-XHI13

$29.47 $74.50
Shipping calculated at checkout.

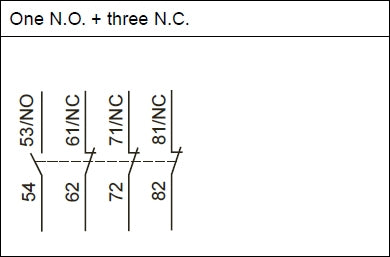

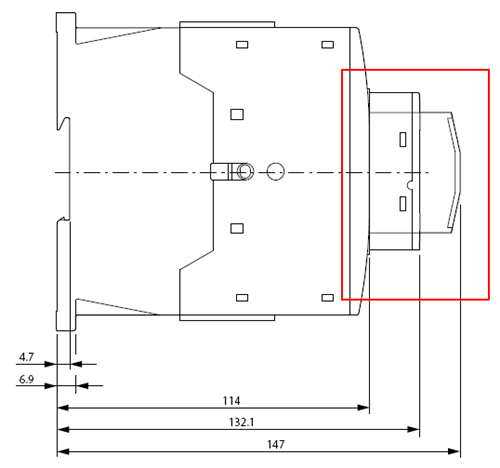

The Eaton/Moeller DILM150-XHI13 is a four pole auxiliary block with 1 normally open and 3 normally closed contacts, screw terminals and mounts to the front of any DILM40 through DILM150 IEC rated contactor. Only one front mounted contact block can be used per contactor but different variations are available, including the DILM150-XHI22 with 2 normally open and 2 normally closed contacts or the DILM150-XHI31 with 3 normally open and 1 normally closed contact set.

DILM150-XHI13 Datasheet

Stock - Can ship today if ordered prior to 4 p.m. EST

UL/CSA Pilot duty rating (General Use) : AC 15A @600V, DC 1A @250V NC contact suitable as a mirror contact Rated Impulse withstand voltage Uimp : 6000vAC Rated (insulation) voltage - IEC Ui : 690vAC Rated operational voltage - IEC Ui : 500vAC Conventional thermal current Ith : 16A

Direct mount to DILM contactors without tools Easy wire fixing with screw termination Numerous options from 2- and 4-poles, top and side mount installations Finger safe terminals

eaton moeller logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Moeller's line of 2 pole and 4 pole top and side mounted auxiliaries can add up to four additional poles to your base contactor. The DILM32 and DILM150 series have two and four pole options for top mount and a 2 pole option for the side mounts. Each contact block is snapped on without tools and has screw type terminals for easy installation.

For the Moeller contactors from the DILM7 to the DILM32 that already have a base mounted contact, the addition of the 4 pole top mount now means that each contactor can have a total of 5 auxiliary contacts. For the DILM40-DILM150, a side mounted contact block can be used in conjunction with the top mount to create 6 additional auxiliary contacts.

Click here for a catalog page of this DILM auxiliary contact
