Other  |  SKU: DILA-XHI02

DILA-XHI02

$15.37 $52.00
Shipping calculated at checkout.

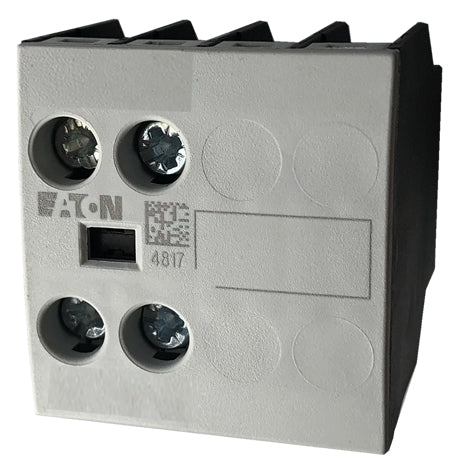

Eaton/Moeller DILA-XHI02 two pole auxiliary contact block with 2 normally closed contact configuration and screw terminals. This front mounted auxiliary mounts without the need for tools to any DILM7 through DILM32 contactor and any DILA 4 pole industrial control relay with either AC or DC coils. Only one DILA-XHI02 can be mounted to any contactor or relay but other contact sequences are available to meet any possible arrangement of contacts up to 8 poles of switching.

Catalog Page / Specifications

Stock - Can ship today if ordered prior to 4 p.m. EST

UL/CSA Pilot duty rating (General Use) : AC 15A @600V, DC 1A @250V NC contact suitable as a mirror contact Rated Impulse withstand voltage Uimp : 6000vAC Rated (insulation) voltage - IEC Ui : 690vAC Rated operational voltage - IEC Ui : 500vAC Conventional thermal current Ith : 16A

Direct mount to DILM contactors and DILA relays without tools Easy wire fixing with screw termination Numerous options from 2- and 4-poles, top and side mount installations Finger safe terminals

eaton moeller logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

Moeller's line of 2 pole and 4 pole top and side mounted auxiliaries can add up to four additional poles to your base contactor. The DILM32, DILA and DILM150 series have two and four pole options for top mount and a 2 pole option for the side mounts. Each contact block is snapped on without tools and has screw type terminals for easy installation.

For the Moeller contactors from the DILM7 to the DILM32 and the Moeller DILA relays that already have a base mounted contact, the addition of the 4 pole top mount now means that each contactor can have a total of 5 auxiliary contacts. For the DILM40-DILM150, a side mounted contact block can be used in conjunction with the top mount to create 6 additional auxiliary contacts.

Click here for a catalog page of this DILA auxiliary contact
