WEG | SKU:
CWM50-11-30V56
47% off
CWM50-11-30V56
$132.27
$249.00
Unit price
/
Unavailable
Shipping calculated at checkout.

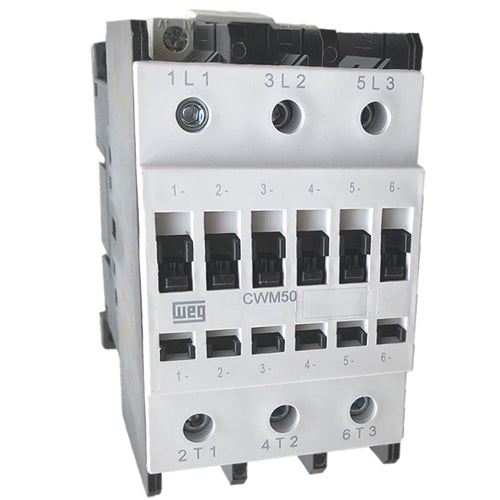

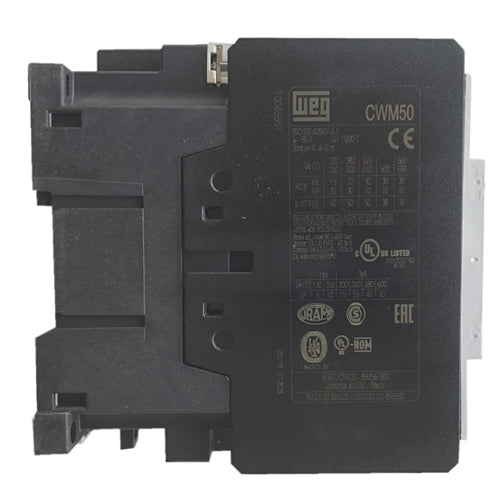

WEG CWM50-11-30V56 3 pole 50 AMP contactor with screw terminals and a 500v50Hz/600v60Hz AC rated coil. This UL/IEC contactor is rated for 15 H.P. at 230 volt, 40 H.P. at 460 volt, mounts on standard DIN rail and front mounted BCXMF10 normally open and BCXMF01 normally closed auxiliary contact blocks are included. 3 pole thermal overload relays can be added to the CWM50-11-30V56 contactor for total motor protection.
This WEG contactor is a certified replacement for the GE CL06A311MY contactor. Click here for details on this replacement.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
CWM50 Datasheet
This WEG contactor is a certified replacement for the GE CL06A311MY contactor. Click here for details on this replacement.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
CWM50 Datasheet
Out of Stock - Can ship in 5-7 days
• Panel mountable or 35mm DIN Rail up to the CWM105 Series
• Front and Side Mounting Auxiliary Contacts
• Finger-Touch IP20 Protection
• Wide Coil Voltage Protection AC or DC
• Mirror Contacts for “Safety-Related” Applications
• Mechanically linked Auxiliary Contacts
CWM50-11-30V56 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
CWM50-11-30V56
$132.27
$249.00
Unit price
/
Unavailable
The WEG CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series common accessories.
A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
Click here for a catalog page of this WEG Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| 3 | 10 | 15 | 15 | 40 | 40 | - | 50 | 3 | 0 | 1 | 1 | CWM50-11-30V56 | 500v50Hz/600v60Hz |
