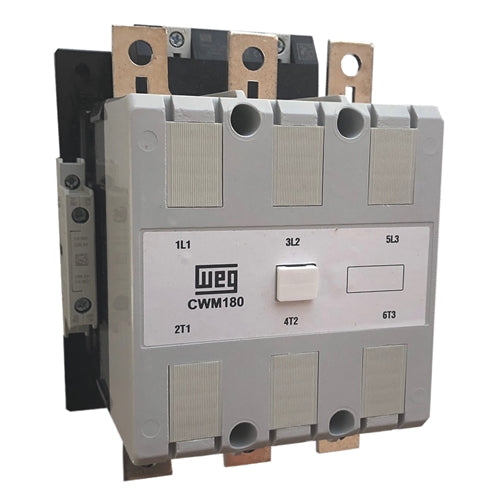

WEG CWM180 3 pole 180 AMP contactor with bolt on terminals and an AC rated coil (must specify coil voltage below). This UL/IEC contactor is rated for 75 H.P. at 230 volt, 150 H.P. at 460 volt and comes with two side mounted BCXML11 auxiliaries, each with 1 normally open and 1 normally closed contacts. 3 pole thermal overload relays can be added to the CWM180 contactor for total motor protection.
This WEG contactor is a certified replacement for the GE CK09BE311 contactor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
CWM180 Datasheet
This WEG contactor is a certified replacement for the GE CK09BE311 contactor.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
CWM180 Datasheet
Stock - Can ship today if ordered prior to 4 p.m. EST
• Panel mountable or 35mm DIN Rail up to the CWM105 Series
• Finger-Touch IP20 Protection
• Wide Coil Voltage Protection AC or DC
• Mirror Contacts for “Safety-Related” Applications
• Mechanically linked Auxiliary Contacts
CWM180 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
CWM180
$559.85
$1,350.00
Unit price
/
Unavailable
The WEG CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series common accessories.
A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
Click here for a catalog page of this WEG Contactor
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES | AUXILIARY CONTACTS | CATALOG # | COIL VOLTAGE | ||||||||
| Single Phase | Three Phase | Inductive AC-1 (A) | Resistive AC-3 (A) | N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
| - | - | 60 | 75 | 150 | 200 | - | 180 | 3 | 0 | 2 | 2 | CWM180 | |
