WEG  |  SKU: CWM12
46% off

CWM12

$48.05 $89.00
Shipping calculated at checkout.

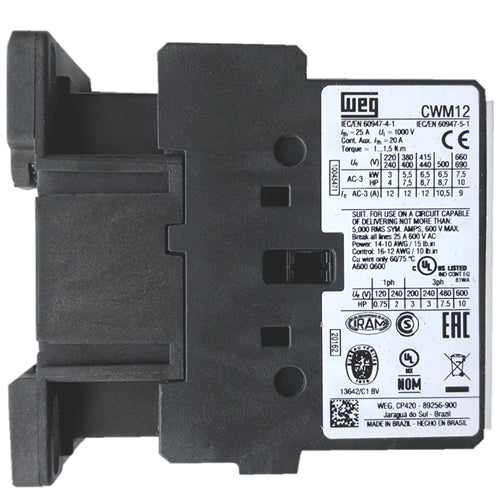

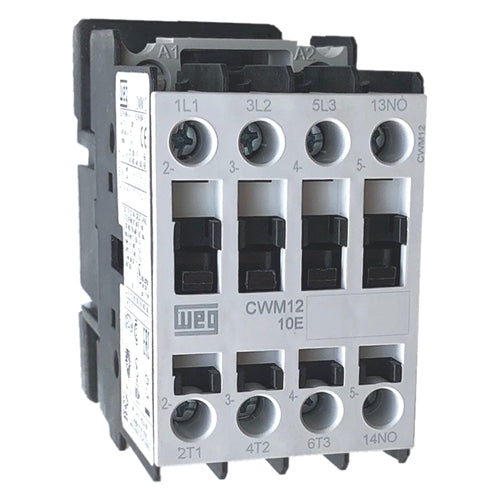

WEG CWM12 3 pole 12 AMP contactor with screw terminals and an AC rated coil (must specify coil voltage below). This UL/IEC contactor is rated for 3 H.P. at 230 volt, 7.5 H.P. at 460 volt, mounts on standard DIN rail and up to four front mounted and two side mounted auxiliaries can be added for additional signalling. 3 pole thermal overload relays can be added to the CWM12 contactor for total motor protection.

This WEG contactor is a certified replacement for the GE CL01A310T contactor. Click here for details on this replacement.

Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.

CWM12 Datasheet

Stock - Can ship today if ordered prior to 4 p.m. EST

• Panel mountable or 35mm DIN Rail up to the CWM105 Series
• Front and Side Mounting Auxiliary Contacts
• Finger-Touch IP20 Protection
• Wide Coil Voltage Protection AC or DC
• Mirror Contacts for “Safety-Related” Applications
• Mechanically linked Auxiliary Contacts

weg brand logo

Delivery and Shipping

We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.

The WEG CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series common accessories.

A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
Click here for a catalog page of this WEG Contactor

MAXIMUM HORSEPOWERMAXIMUM CURRENT# OF POLESAUXILIARY
CONTACTS		CATALOG #COIL
VOLTAGE
Single PhaseThree PhaseInductive
AC-1 (A)		Resistive
AC-3 (A)		N.O.N.C.N.O.N.C.
115v HP230v HP200v HP230v HP460v HP575v HP
0.75
2
3
3
7.5
10
-12
301
0CWM12
