WEG | SKU:
CWC09-10-30V47
51% off
CWC09-10-30V47
$25.61
$52.00
Unit price
/
Unavailable
Shipping calculated at checkout.

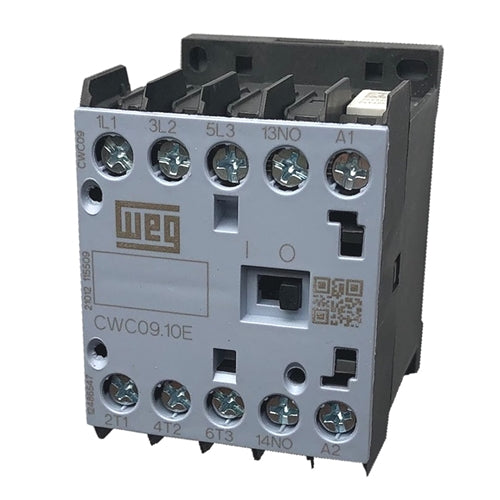

The WEG CWC09-10-30V47 is a miniature contactor rated for 9 AMPS, 3 horsepower at 230 volt and 5 horsepower at 460 volt 3 phase and comes with a 480v60Hz AC rated coil. This IEC rated contactor comes with 1 normally open auxiliary, screw terminals, and mounts to standard 35MM DIN rail. Front mounted auxiliary contacts can be added to the CWC09-10-30V47 along with thermal overload relays to provide complete motor protection for any applications needs.
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
CWC09 Datasheet
Country of Origin : Brazil
H.S. Code : 8536.49.0065
Need help finding the coil voltage? Click here to see a picture to help determine the location of the coil voltage for this contactor.
CWC09 Datasheet
Country of Origin : Brazil
H.S. Code : 8536.49.0065
Out of Stock - Can ship in 5-7 days
CWC09-10-30V47 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We ship the same day on all in stock orders that are placed prior to 4 p.m. EST, Monday through Friday. We offer Flat Rate shipping ($9.00 for UPS Ground) and expedited shipping can be selected at checkout.
CWC09-10-30V47
$25.61
$52.00
Unit price
/
Unavailable
The WEG CWC series of IEC miniature contactors was
designed as a general purpose contactor taking into consideration the
heavy demands and need for high reliability in modern industry. They are
rated for inductive loads up to 22 AMPS @ 460V. CWC miniature contactors are
compact in frame size allowing for optimization of valuable internal
space within electrical enclosures. Reducing inventory is a “Snap” away
with the CWC Series common accessories.
A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
A full line of accessories are available for these WEG contactors, including front and side mounted auxiliaries, mechanical interlocks for reversing contactor sets and thermal overload relay for complete motor protection. And will standard DIN rail mounting along with screw terminals, installation and removal is simple, thus reducing the down time and costs associated with maintenance and repair.
| MAXIMUM HORSEPOWER | MAXIMUM CURRENT | # OF POLES |
AUXILIARY CONTACTS |
CATALOG # |
COIL VOLTAGE |
||||||||
| Single Phase | Three Phase |
Inductive AC-1 (A) |
Resistive AC-3 (A) |
N.O. | N.C. | N.O. | N.C. | ||||||
| 115v HP | 230v HP | 200v HP | 230v HP | 460v HP | 575v HP | ||||||||
|
.33 |
1 |
2 |
3 |
5 |
7.5 |
- |
9 |
3 | 0 | 1 |
0 | CWC09-10-30V47 | 480v60Hz |
